982M Caterpillar 982M Specifications & Technical Data (2014—2020)

The Caterpillar 982M is a wheel loader manufactured by Caterpillar from 2014 to 2020. It has a weight of 35.56 tons and a transpor…

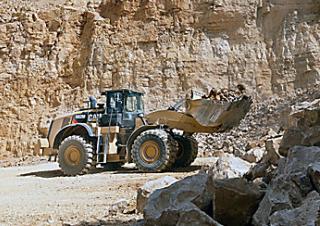

The Caterpillar 982M is a wheel loader manufactured by Caterpillar from 2014 to 2020. It has a weight of 35.56 tons and a transport length of 10.18 meters. The bucket width is 3.568 meters, and it has a maximum discharge height of 3.36 meters. The travel speed of the wheel loader is 39.5 km/h. It has a transport width of 3.45 meters and a transport height of 4.11 meters. The turning radius outside is 15.03 meters. The bucket capacity ranges from a minimum of 4.6 cubic meters. The special equipment included in this construction machine is air conditioning.

982M

Years of manufacture: 2014—2020

Data sheet
Spare parts
Transport
News

Technical specs - 982M Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 35.56 t

Standard tyres: 875/65 R29

Bucket width: 3.568 m

Bucket capacity min.: 4.6 m³

Steering mode: KL

Transport length: 10.18 m

Transport width: 3.45 m

Transport height: 4.11 m

Travel speed: 39.5 km/h

Max. discharge height: 3.36 m

Turning radius outside: 15.03 m

Engine manuf.: Caterpillar

Engine type: C13 Acert

Engine power: 317 kW

Displacement: 12.5 l

Cylinder bore x stroke: 130x157 mm

Emission level: IV

More technical details, like: bucket capacity, bucket capacity max., lifting force, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Buy full specs

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 982M FAQ

When was the Caterpillar 982M manufactured?

The Caterpillar 982M was manufactured from 2014 to 2020.

How much does the Caterpillar 982M weigh?

The Caterpillar 982M weighs 35.56 tons.

What are the transport dimensions of the Caterpillar 982M wheel loader?

The Caterpillar 982M has a transport length of 10.18 meters, a transport width of 3.45 meters, and a transport height of 4.11 meters.

What is the travel speed of the Caterpillar 982M wheel loader?

The Caterpillar 982M has a travel speed of 39.5 km/h.

What are the undercarriage specifications of the Caterpillar 982M wheel loader?

The Caterpillar 982M wheel loader is equipped with standard tyres sized 875/65 R29.

What are the maneuverability specifications of the Caterpillar 982M wheel loader?

The Caterpillar 982M wheel loader has an articulated-frame steering mode and an outside turning radius of 15.03 meters.

What is the maximum discharge height of the Caterpillar 982M?

The Caterpillar 982M has a maximum discharge height of 3.36 meters.

What are the specifications of the primary work tool on the Caterpillar 982M wheel loader?

The primary work tool of the Caterpillar 982M wheel loader has a minimum bucket capacity of 4.6 cubic meters and a bucket width of 3.57 meters.
