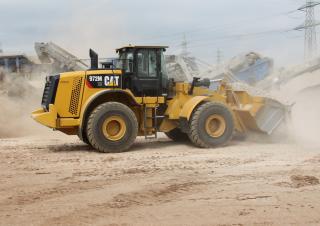

972M Caterpillar 972M Specifications & Technical Data (2014—2022)

The Caterpillar 972M is a wheel loader manufactured by Caterpillar from 2014 to 2022. It has a weight of 24.9 tons and a transport…

The Caterpillar 972M is a wheel loader manufactured by Caterpillar from 2014 to 2022. It has a weight of 24.9 tons and a transport length of 7.77 meters. The bucket capacity is 4.8 cubic meters with a width of 3.2 meters. The maximum discharge height is 3.15 meters. It has a travel speed of 39.5 km/h and a transport width of 3.01 meters. The transport height is 3.52 meters and the turning radius outside is 7.71 meters. The bucket capacity remains constant at 4.8 cubic meters. It is equipped with air conditioning and a swing loader feature.

972M

Years of manufacture: 2014—2022

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 972M Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 24.9 t

Standard tyres: 26.5-25

Bucket width: 3.2 m

Bucket capacity: 4.8 m³

Bucket capacity min.: 4.8 m³

Steering mode: KL

Transport length: 7.77 m

Transport width: 3.01 m

Transport height: 3.52 m

Travel speed: 39.5 km/h

Max. discharge height: 3.15 m

Turning radius outside: 7.71 m

Engine manuf.: Caterpillar

Engine type: C9.3 Acert

Engine power: 251 kW

Displacement: 9.3 l

Revolutions at max torque: 1100 rpm

Max. torque: 1654 Nm

Emission level: Tier 4

More technical details, like: bucket capacity max., lifting force, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: Yes
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 972M FAQ

When was the Caterpillar 972M manufactured?

The Caterpillar 972M was manufactured from 2014 to 2022.

How much does the Caterpillar 972M wheel loader weigh?

The Caterpillar 972M wheel loader weighs 24.9 tons.

What are the transport dimensions of the Caterpillar 972M wheel loader?

The Caterpillar 972M has a transport length of 7.77 meters, a transport width of 3.01 meters, and a transport height of 3.52 meters.

What is the travel speed of the Caterpillar 972M wheel loader?

The Caterpillar 972M wheel loader has a travel speed of 39.5 km/h.

What are the undercarriage specifications of the Caterpillar 972M wheel loader?

The Caterpillar 972M wheel loader is equipped with standard tyres sized 26.5-25.

What are the maneuverability specifications of the Caterpillar 972M wheel loader?

The Caterpillar 972M wheel loader has an outside turning radius of 7.71 meters and uses articulated-frame steering.

What is the maximum discharge height of the Caterpillar 972M?

The Caterpillar 972M has a maximum discharge height of 3.15 meters.

What are the bucket specifications of the Caterpillar 972M wheel loader?

The Caterpillar 972M wheel loader has a bucket capacity of 4.8 cubic meters and a bucket width of 3.2 meters.
