972 Caterpillar 972 Specifications & Technical Data (2021—2026)

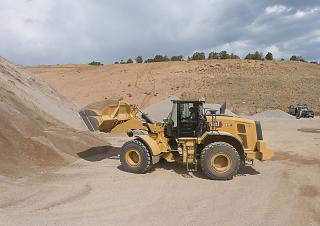

The Caterpillar 972 is a wheel loader manufactured since 2021. It has a weight of 24.9 tons and a transport length of 7.77 meters.…

The Caterpillar 972 is a wheel loader manufactured since 2021. It has a weight of 24.9 tons and a transport length of 7.77 meters. The bucket capacity is 4.8 cubic meters, with a bucket width of 3.2 meters. The maximum discharge height is 3.15 meters, and it has a travel speed of 39.5 km/h. The transport width is 3.01 meters, and the transport height is 3.52 meters. The turning radius outside is 7.71 meters. Special equipment includes air conditioning, a diesel particulate filter, and a swing loader.

972

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 972 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 24.9 t

Standard tyres: 26.5-25

Bucket width: 3.2 m

Bucket capacity: 4.8 m³

Bucket capacity min.: 4.8 m³

Steering mode: KL

Transport length: 7.77 m

Transport width: 3.01 m

Transport height: 3.52 m

Travel speed: 39.5 km/h

Max. discharge height: 3.15 m

Turning radius outside: 7.71 m

Engine manuf.: Caterpillar

Engine type: C9.3B

Engine power: 239 kW

Displacement: 9.3 l

Revolutions at max torque: 1100 rpm

Max. torque: 1654 Nm

Cylinder bore x stroke: 115x149 mm

Emission level: EU V

More technical details, like: bucket capacity max., lifting force, model series, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: Yes
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 972 FAQ

When was the Caterpillar 972 manufactured?

The Caterpillar 972 was first produced in 2021.

How much does the Caterpillar 972 wheel loader weigh?

The Caterpillar 972 wheel loader weighs 24.9 tons.

What are the transport dimensions of the Caterpillar 972 wheel loader?

The Caterpillar 972 wheel loader has a transport length of 7.77 meters, a transport width of 3.01 meters, and a transport height of 3.52 meters.

What is the travel speed of the Caterpillar 972 wheel loader?

The Caterpillar 972 wheel loader has a travel speed of 39.5 km/h.

What are the standard tyres of the Caterpillar 972 wheel loader?

The Caterpillar 972 wheel loader is equipped with standard tyres sized 26.5-25.

What are the maneuverability specifications of the Caterpillar 972 wheel loader?

The Caterpillar 972 wheel loader has an articulated-frame steering system and an outside turning radius of 7.71 meters.

What is the maximum discharge height of the Caterpillar 972?

The Caterpillar 972 has a maximum discharge height of 3.15 meters.

What are the specifications of the primary bucket on the Caterpillar 972 wheel loader?

The primary bucket on the Caterpillar 972 has a capacity of 4.8 cubic meters and a width of 3.2 meters.

How much is a Caterpillar 972 Wheel loader (2021u20132025) worth?

The residual value of the Caterpillar 972 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
