966XE Caterpillar 966XE Specifications & Technical Data (2021—2026)

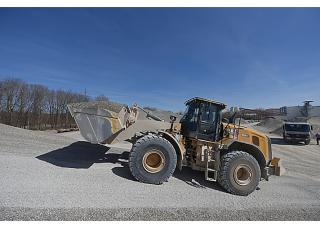

The Caterpillar 966XE is a wheel loader designed for construction purposes. It has been manufactured since 2021 and weighs 23.22 t…

The Caterpillar 966XE is a wheel loader designed for construction purposes. It has been manufactured since 2021 and weighs 23.22 tons. With a transport length of 8.75 meters and a transport width of 2.991 meters, it is a sizable machine. The bucket capacity is 4.4 cubic meters, with a width of 3.2 meters. The maximum discharge height is 2.991 meters. The travel speed of the wheel loader is 39.5 km/h. It has a transport height of 3.859 meters. The lifting force of the machine is 173 kN, providing strong capabilities for lifting heavy loads. The turning radius outside is 6.804 meters, allowing for maneuverability on construction sites. The wheel loader is equipped with special features such as air conditioning, a diesel particulate filter, and a swing loader.

966XE

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 966XE Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 23.22 t

Standard tyres: 26.5-25

Bucket width: 3.2 m

Bucket capacity: 4.4 m³

Bucket capacity min.: 4.4 m³

Steering mode: KL

Transport length: 8.75 m

Transport width: 2.991 m

Transport height: 3.859 m

Travel speed: 39.5 km/h

Max. discharge height: 2.991 m

Turning radius outside: 6.804 m

Lifting force: 173 kN

Engine manuf.: Caterpillar

Engine type: C9.3

Engine power: 222 kW

Displacement: 9.3 l

Revolutions at max torque: 1200 rpm

Max. torque: 1618 Nm

Emission level: Tier 4

More technical details, like: bucket capacity max., model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: Yes
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 966XE FAQ

When was the Caterpillar 966XE manufactured?

The Caterpillar 966XE was first produced in 2021.

How much does the Caterpillar 966XE wheel loader weigh?

The Caterpillar 966XE wheel loader weighs 23.22 tons.

What are the transport dimensions of the Caterpillar 966XE wheel loader?

The Caterpillar 966XE has a transport length of 8.75 meters, a transport width of 2.99 meters, and a transport height of 3.86 meters.

What is the travel speed of the Caterpillar 966XE wheel loader?

The Caterpillar 966XE has a travel speed of 39.5 km/h.

What are the undercarriage specifications of the Caterpillar 966XE wheel loader?

The Caterpillar 966XE wheel loader is equipped with standard tyres sized 26.5-25.

What are the maneuverability specifications of the Caterpillar 966XE wheel loader?

The Caterpillar 966XE wheel loader has an outside turning radius of 6.804 meters and uses articulated-frame steering.

What is the lifting force of the Caterpillar 966XE wheel loader, given that no power rating data is available?

The Caterpillar 966XE wheel loader has a lifting force of 173 kN. No power rating data is provided in the available specifications.

What is the maximum discharge height of the Caterpillar 966XE?

The Caterpillar 966XE has a maximum discharge height of 2.99 meters.

What are the bucket specifications of the Caterpillar 966XE wheel loader?

The Caterpillar 966XE has a bucket capacity of 4.4 cubic meters, a minimum bucket capacity of 4.4 cubic meters, and a bucket width of 3.2 meters.

How much is a Caterpillar 966XE Wheel loader (2021u20132025) worth?

The residual value of the Caterpillar 966XE depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
