966K Caterpillar 966K Specifications & Technical Data (2012—2015)

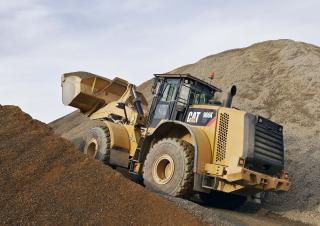

The Caterpillar 966K is a wheel loader manufactured from 2012 to 2015. It has a weight of 23.8 tons and a bucket capacity of 4.2 c…

The Caterpillar 966K is a wheel loader manufactured from 2012 to 2015. It has a weight of 23.8 tons and a bucket capacity of 4.2 cubic meters, with a bucket width of 3.22 meters. The maximum discharge height is 4.234 meters, and it has a travel speed of 37.4 km/h. The lifting force is 173 kN, and it is equipped with air conditioning.

966K

Years of manufacture: 2012—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 966K Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 23.8 t

Standard tyres: 26.5x25

Bucket width: 3.22 m

Bucket capacity: 4.2 m³

Bucket capacity min.: 4.2 m³

Steering mode: KL

Travel speed: 37.4 km/h

Max. discharge height: 4.234 m

Lifting force: 173 kN

Engine manuf.: Caterpillar

Engine type: C9 Acert

Engine power: 201 kW

Displacement: 0.3 l

Revolutions at max torque: 1800 rpm

More technical details, like: bucket capacity max., transport length, transport width, transport height, turning radius outside, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 966K FAQ

When was the Caterpillar 966K manufactured?

The Caterpillar 966K was manufactured from 2012 to 2015.

How much does the Caterpillar 966K wheel loader weigh?

The Caterpillar 966K wheel loader weighs 23.8 tons.

What is the travel speed of the Caterpillar 966K wheel loader?

The Caterpillar 966K wheel loader has a travel speed of 37.4 km/h.

What are the undercarriage specifications of the Caterpillar 966K wheel loader?

The Caterpillar 966K wheel loader is equipped with standard tyres sized 26.5x25.

What is the steering mode of the Caterpillar 966K wheel loader?

The Caterpillar 966K wheel loader has articulated-frame steering.

What is the lifting force of the Caterpillar 966K wheel loader, given that no other power ratings are provided?

The Caterpillar 966K wheel loader has a lifting force of 173 kN. No other power ratings are provided in the available data.

What is the maximum discharge height for material handling of the Caterpillar 966K?

The Caterpillar 966K has a maximum discharge height of 4.23 meters for material handling.

What are the specifications of the bucket on the Caterpillar 966K wheel loader?

The bucket of the Caterpillar 966K has a capacity of 4.2 cubic meters and a width of 3.22 meters.
