962M Caterpillar 962M Specifications & Technical Data (2019—2026)

The Caterpillar 962M is a wheel loader model manufactured since 2019. It has a weight of 22.31 tons and a transport length of 6.91…

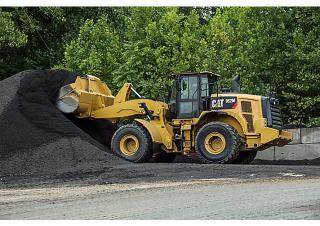

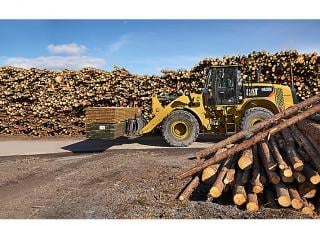

The Caterpillar 962M is a wheel loader model manufactured since 2019. It has a weight of 22.31 tons and a transport length of 6.91 meters. The bucket capacity is 9.2 cubic meters, with a minimum capacity also at 9.2 cubic meters. The travel speed of this machine is 39.5 km/h. It has a transport width of 2.81 meters and a transport height of 3.75 meters.

962M

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 962M Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 22.31 t

Standard tyres: 23.5R25

Bucket capacity: 9.2 m³

Bucket capacity min.: 9.2 m³

Transport length: 6.91 m

Transport width: 2.81 m

Transport height: 3.75 m

Travel speed: 39.5 km/h

Engine manuf.: Caterpillar

Engine type: C7.1

Engine power: 186 kW

Displacement: 7.01 l

Revolutions at max torque: 1350 rpm

Max. torque: 1172 Nm

Cylinder bore x stroke: 105x135 mm

Emission level: Tier 4 f/ IV

More technical details, like: bucket width, bucket capacity max., steering mode, max. discharge height, turning radius outside, lifting force, model series, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 962M FAQ

When was the Caterpillar 962M manufactured?

The Caterpillar 962M was first produced in 2019.

How much does the Caterpillar 962M wheel loader weigh?

The Caterpillar 962M wheel loader weighs 22.31 tons.

What are the transport dimensions of the Caterpillar 962M wheel loader?

The Caterpillar 962M has a transport length of 6.91 meters, a transport width of 2.81 meters, and a transport height of 3.75 meters.

What is the travel speed of the Caterpillar 962M wheel loader?

The Caterpillar 962M wheel loader has a travel speed of 39.5 km/h.

What are the standard tyres of the Caterpillar 962M wheel loader?

The Caterpillar 962M wheel loader has standard tyres sized 23.5R25.

What is the bucket capacity of the Caterpillar 962M wheel loader?

The Caterpillar 962M wheel loader has a bucket capacity of 9.2 cubic meters.
