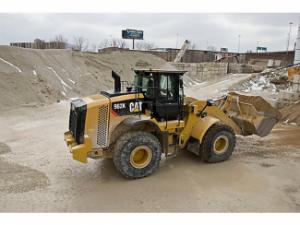

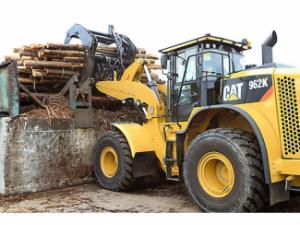

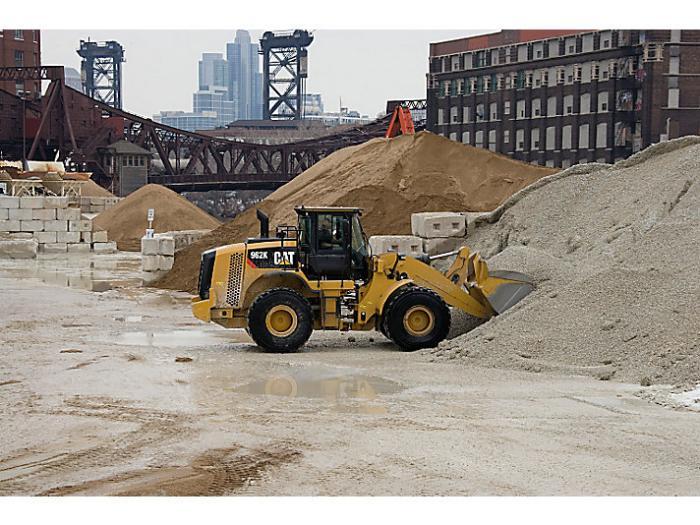

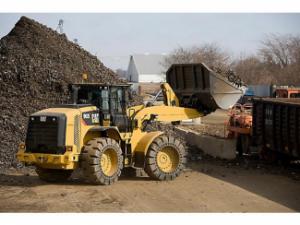

962K Caterpillar 962K Specifications & Technical Data (2012—2015)

The Caterpillar 962K is a wheel loader manufactured from 2012 to 2015. It has a weight of 19.7 tons and a bucket capacity ranging …

The Caterpillar 962K is a wheel loader manufactured from 2012 to 2015. It has a weight of 19.7 tons and a bucket capacity ranging from 2.5 to 9.2 cubic meters, with a bucket width of 2.994 meters. The maximum discharge height is 4.237 meters, and it has a travel speed of 37.9 km/h. The transport width is 2.719 meters, and the transport height is 3.356 meters. It has a lifting force of 195 kN and a turning radius outside of 5.952 meters. Special equipment includes air conditioning.

962K

Years of manufacture: 2012—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 962K Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 19.7 t

Standard tyres: 23.5x25

Bucket width: 2.994 m

Bucket capacity: 3.8 m³

Bucket capacity min.: 2.5 m³

Bucket capacity max.: 9.2 m³

Steering mode: KL

Transport width: 2.719 m

Transport height: 3.356 m

Travel speed: 37.9 km/h

Max. discharge height: 4.237 m

Turning radius outside: 5.952 m

Lifting force: 195 kN

Engine manuf.: Caterpillar

Engine type: C7 Acert

Engine power: 168 kW

Displacement: 7.2 l

More technical details, like: transport length, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 962K FAQ

When was the Caterpillar 962K manufactured?

The Caterpillar 962K was manufactured from 2012 to 2015.

How much does the Caterpillar 962K wheel loader weigh?

The Caterpillar 962K wheel loader weighs 19.7 tons.

What are the transport dimensions of the Caterpillar 962K wheel loader?

The Caterpillar 962K has a transport width of 2.72 meters and a transport height of 3.36 meters.

What is the travel speed of the Caterpillar 962K wheel loader?

The Caterpillar 962K wheel loader has a travel speed of 37.9 km/h.

What is the size of the standard tyres on the Caterpillar 962K wheel loader?

The Caterpillar 962K wheel loader is equipped with standard tyres sized 23.5x25.

What are the maneuverability specifications of the Caterpillar 962K wheel loader?

The Caterpillar 962K wheel loader has an articulated-frame steering system and an outside turning radius of 5.952 meters.

What is the lifting force of the Caterpillar 962K wheel loader?

The Caterpillar 962K wheel loader has a lifting force of 195 kN.

What is the maximum discharge height of the Caterpillar 962K wheel loader?

The Caterpillar 962K wheel loader has a maximum discharge height of 4.24 meters.

What are the specifications of the bucket on the Caterpillar 962K wheel loader?

The Caterpillar 962K wheel loader has a bucket with a capacity of 3.8 mu00b3, a maximum capacity of 9.2 mu00b3, a minimum capacity of 2.5 mu00b3, and a width of 2.99 meters.
