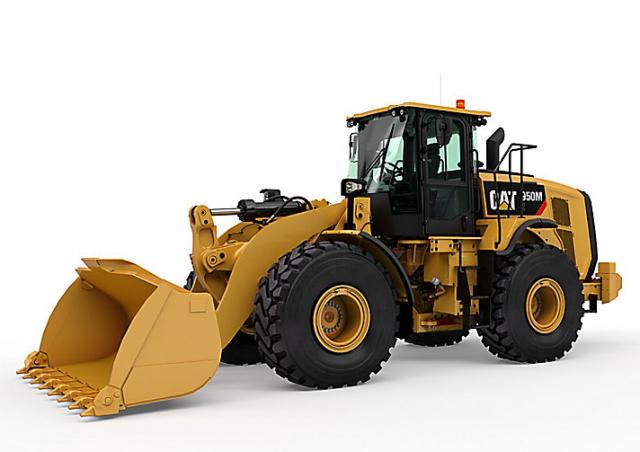

950M Caterpillar 950M Specifications & Technical Data (2020—2022)

The Caterpillar 950M is a wheel loader manufactured from 2020 to 2022. It has a weight of 19.21 tons and a transport length of 6.9…

The Caterpillar 950M is a wheel loader manufactured from 2020 to 2022. It has a weight of 19.21 tons and a transport length of 6.91 meters. The bucket capacity is 3.4 cubic meters with a width of 3 meters. The maximum discharge height is 2.79 meters. It has a travel speed of 39.5 km/h and a transport width of 2.82 meters. The transport height is 3.45 meters and the turning radius outside is 6.44 meters. The bucket capacity remains constant at 3.4 cubic meters. It is equipped with air conditioning and a swing loader feature.

950M

Years of manufacture: 2020—2022

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 950M Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 19.21 t

Standard tyres: 23.5 R25

Bucket width: 3 m

Bucket capacity: 3.4 m³

Bucket capacity min.: 3.4 m³

Steering mode: KL

Transport length: 6.91 m

Transport width: 2.82 m

Transport height: 3.45 m

Travel speed: 39.5 km/h

Max. discharge height: 2.79 m

Turning radius outside: 6.44 m

Engine manuf.: Caterpillar

Engine type: C7.1 Acert

Engine power: 186 kW

Displacement: 7.01 l

Revolutions at max torque: 2100 rpm

Max. torque: 1231/1300 Nm

Emission level: EU V

More technical details, like: bucket capacity max., lifting force, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: Yes
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 950M FAQ

When was the Caterpillar 950M manufactured?

The Caterpillar 950M was manufactured from 2020 to 2022.

How much does the Caterpillar 950M wheel loader weigh?

The Caterpillar 950M wheel loader weighs 19.21 tons.

What are the transport dimensions of the Caterpillar 950M wheel loader?

The Caterpillar 950M has a transport length of 6.91 meters, a transport width of 2.82 meters, and a transport height of 3.45 meters.

What is the travel speed of the Caterpillar 950M wheel loader?

The Caterpillar 950M wheel loader has a travel speed of 39.5 km/h.

What are the standard tyre specifications of the Caterpillar 950M wheel loader?

The Caterpillar 950M wheel loader is equipped with standard tyres sized 23.5 R25.

What are the maneuverability specifications of the Caterpillar 950M wheel loader?

The Caterpillar 950M wheel loader has an outside turning radius of 6.44 meters and features articulated-frame steering.

What is the material handling capacity of the Caterpillar 950M in terms of discharge height?

The Caterpillar 950M has a maximum discharge height of 2.79 meters.

What are the specifications of the bucket on the Caterpillar 950M wheel loader?

The Caterpillar 950M wheel loader has a bucket capacity of 3.4 cubic meters, a minimum bucket capacity of 3.4 cubic meters, and a bucket width of 3 meters.

How much is a Caterpillar 950M Wheel loader (2020u20132022) worth?

The residual value of the Caterpillar 950M depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
