950L Caterpillar 950L Specifications & Technical Data (2019—2026)

The Caterpillar 950L is a wheel loader manufactured since 2019. It has a weight of 18.14 tons and a transport length of 8.25 meter…

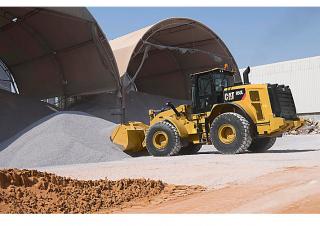

The Caterpillar 950L is a wheel loader manufactured since 2019. It has a weight of 18.14 tons and a transport length of 8.25 meters. The bucket capacity is 4.4 cubic meters, with a maximum discharge height of 2.86 meters. The travel speed of the machine is 39.5 km/h. It has a transport width of 2.82 meters and a transport height of 3.75 meters. The lifting force of the wheel loader is 152 kN, and it has a turning radius outside of 5.98 meters. The machine is equipped with air conditioning.

950L

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 950L Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 18.14 t

Standard tyres: 23.5R2 5

Bucket capacity: 4.4 m³

Bucket capacity min.: 4.4 m³

Transport length: 8.25 m

Transport width: 2.82 m

Transport height: 3.75 m

Travel speed: 39.5 km/h

Max. discharge height: 2.86 m

Turning radius outside: 5.98 m

Lifting force: 152 kN

Engine manuf.: Caterpillar

Engine type: C 7.1 Acert

Engine power: 185 kW

Displacement: 7.01 l

Max. torque: 984 Nm

Cylinder bore x stroke: 105x135 mm

Emission level: Tier 3/ IIIA

More technical details, like: bucket width, bucket capacity max., steering mode, model series, dimension lxwxh, revolutions at max torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 950L FAQ

When was the Caterpillar 950L manufactured?

The Caterpillar 950L was first produced in 2019.

How much does the Caterpillar 950L weigh?

The Caterpillar 950L weighs 18.14 tons.

What are the transport dimensions of the Caterpillar 950L wheel loader?

The Caterpillar 950L has a transport length of 8.25 meters, a transport width of 2.82 meters, and a transport height of 3.75 meters.

What is the travel speed of the Caterpillar 950L wheel loader?

The Caterpillar 950L has a travel speed of 39.5 km/h.

What is the undercarriage specification of the Caterpillar 950L wheel loader?

The Caterpillar 950L wheel loader has standard tyres sized 23.5R2 5.

What is the turning radius of the Caterpillar 950L wheel loader?

The Caterpillar 950L wheel loader has an outside turning radius of 5.98 meters.

What is the lifting force of the Caterpillar 950L wheel loader?

The Caterpillar 950L wheel loader has a lifting force of 152 kN.

What is the material handling capacity of the Caterpillar 950L in terms of maximum discharge height?

The Caterpillar 950L has a maximum discharge height of 2.86 meters.

What is the bucket capacity of the Caterpillar 950L wheel loader?

The Caterpillar 950L wheel loader has a bucket capacity of 4.4 cubic meters.
