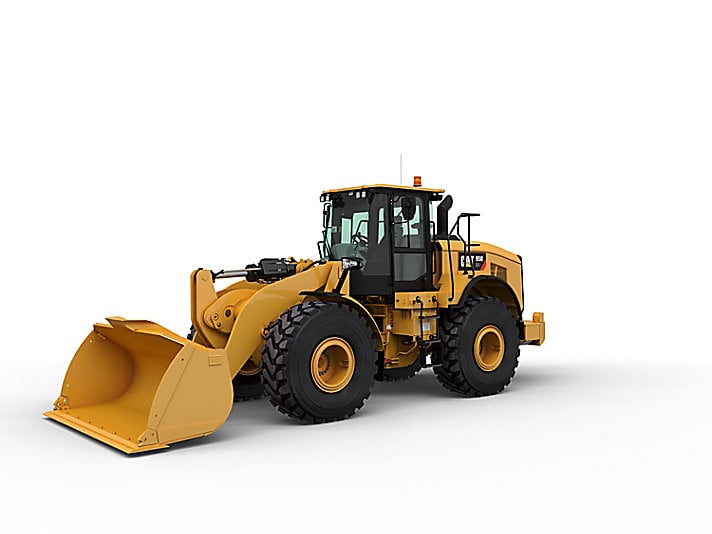

950GC Caterpillar 950GC Specifications & Technical Data (2020—2026)

The Caterpillar 950GC is a wheel loader manufactured since 2020. It has a weight of 18.85 tons and a transport length of 8.29 mete…

The Caterpillar 950GC is a wheel loader manufactured since 2020. It has a weight of 18.85 tons and a transport length of 8.29 meters. The bucket capacity is 3.1 cubic meters with a width of 2.93 meters. The maximum discharge height is 3.05 meters. It has a travel speed of 34 km/h and a transport width of 2.93 meters. The transport height is 3.46 meters. The lifting force is 154 kN and the turning radius outside is 6.2 meters. The minimum bucket capacity is also 3.1 cubic meters.

950GC

Years of manufacture: 2020—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 950GC Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 18.85 t

Standard tyres: 26.5 R 25 L3

Bucket width: 2.93 m

Bucket capacity: 3.1 m³

Bucket capacity min.: 3.1 m³

Steering mode: KL

Transport length: 8.29 m

Transport width: 2.93 m

Transport height: 3.46 m

Travel speed: 34 km/h

Max. discharge height: 3.05 m

Turning radius outside: 6.2 m

Lifting force: 154 kN

Engine manuf.: Caterpillar

Engine type: C7.1 Acert

Engine power: 179 kW

Displacement: 7.1 l

Max. torque: 1099 Nm

Cylinder bore x stroke: 105x135 mm

Emission level: EU V

More technical details, like: revolutions at max torque, bucket capacity max., model series, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 950GC FAQ

When was the Caterpillar 950GC manufactured?

The Caterpillar 950GC was first produced in 2020.

How much does the Caterpillar 950GC weigh?

The Caterpillar 950GC weighs 18.85 tons.

What are the transport dimensions of the Caterpillar 950GC wheel loader?

The Caterpillar 950GC has a transport length of 8.29 meters, a transport width of 2.93 meters, and a transport height of 3.46 meters.

What is the travel speed of the Caterpillar 950GC wheel loader?

The Caterpillar 950GC wheel loader has a travel speed of 34 km/h.

What are the standard tyres specifications of the Caterpillar 950GC?

The Caterpillar 950GC is equipped with standard tyres sized 26.5 R 25 L3.

What are the maneuverability specifications of the Caterpillar 950GC wheel loader?

The Caterpillar 950GC wheel loader has an articulated-frame steering system and an outside turning radius of 6.2 meters.

What is the lifting force of the Caterpillar 950GC wheel loader?

The Caterpillar 950GC wheel loader has a lifting force of 154 kN.

What is the maximum discharge height of the Caterpillar 950GC?

The Caterpillar 950GC has a maximum discharge height of 3.05 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 950GC?

The Caterpillar 950GC has a bucket with a capacity of 3.1 cubic meters and a width of 2.93 meters.

How much is a Caterpillar 950GC Wheel loader (2020u20132025) worth?

The residual value of the Caterpillar 950GC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
