938M Caterpillar 938M Specifications & Technical Data (2020—2026)

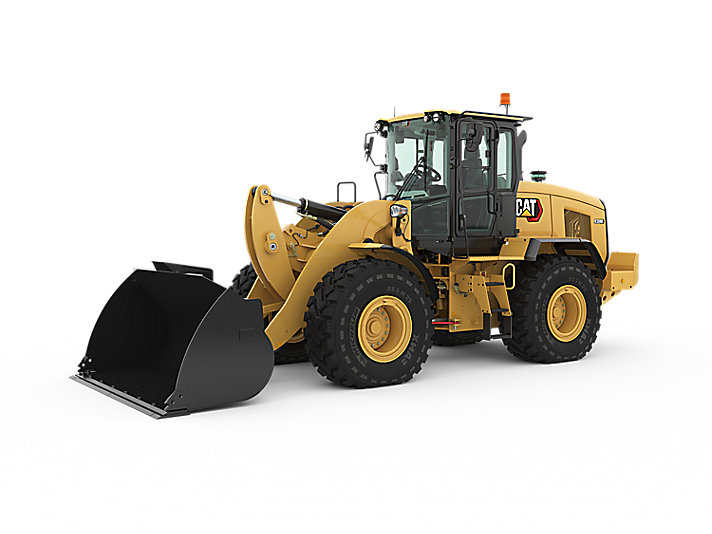

The Caterpillar 938M is a wheel loader manufactured since 2020. It has a weight of 17.49 tons and a transport length of 7.99 meter…

The Caterpillar 938M is a wheel loader manufactured since 2020. It has a weight of 17.49 tons and a transport length of 7.99 meters. The bucket capacity is 2.9 cubic meters, with a bucket width of 2.75 meters. The maximum discharge height is 2.57 meters. It has a transport width of 2.54 meters and a transport height of 3.74 meters. The turning radius outside is 5.55 meters. Special equipment includes air conditioning, a diesel particulate filter, and a swing loader.

938M

Years of manufacture: 2020—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 938M Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 17.49 t

Standard tyres: 20.5 R25

Bucket width: 2.75 m

Bucket capacity: 2.9 m³

Bucket capacity min.: 2.9 m³

Steering mode: KL

Transport length: 7.99 m

Transport width: 2.54 m

Transport height: 3.74 m

Max. discharge height: 2.57 m

Turning radius outside: 5.55 m

Engine manuf.: Caterpillar

Engine type: C7.1 Acert

Engine power: 140 kW

Displacement: 7.1 l

Max. torque: 852 Nm

Emission level: EU V

More technical details, like: bucket capacity max., travel speed, lifting force, model series, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: Yes
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 938M FAQ

When was the Caterpillar 938M manufactured?

The Caterpillar 938M was first produced in 2020.

How much does the Caterpillar 938M wheel loader weigh?

The Caterpillar 938M wheel loader weighs 17.49 tons.

What are the transport dimensions of the Caterpillar 938M wheel loader?

The Caterpillar 938M wheel loader has a transport length of 7.99 meters, a transport width of 2.54 meters, and a transport height of 3.74 meters.

What is the size of the standard tyres on the Caterpillar 938M wheel loader?

The Caterpillar 938M wheel loader is equipped with standard tyres sized 20.5 R25.

What are the maneuverability specifications of the Caterpillar 938M wheel loader?

The Caterpillar 938M wheel loader has an articulated-frame steering system and an outside turning radius of 5.55 meters.

What is the maximum discharge height of the Caterpillar 938M wheel loader?

The Caterpillar 938M wheel loader has a maximum discharge height of 2.57 meters.

What are the specifications of the bucket on the Caterpillar 938M wheel loader?

The Caterpillar 938M wheel loader has a bucket capacity of 2.9 cubic meters and a bucket width of 2.75 meters.
