938M Caterpillar 938M Specifications & Technical Data (2020—2026)

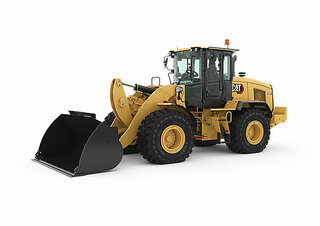

The Caterpillar 938M is a wheel loader manufactured since 2020. It has a weight of 16.4 tons and a transport length of 7.656 meter…

The Caterpillar 938M is a wheel loader manufactured since 2020. It has a weight of 16.4 tons and a transport length of 7.656 meters. The bucket capacity is 2.9 cubic meters, with a bucket width of 2.75 meters. The maximum discharge height is 2.834 meters. It has a travel speed of 40 km/h and a transport width of 2.675 meters. The transport height is 3.669 meters, and the turning radius outside is 6.133 meters. Special equipment includes air conditioning, a diesel particulate filter, and a swing loader.

938M

Years of manufacture: 2020—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 938M Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 16.4 t

Standard tyres: 20.5 R25

Bucket width: 2.75 m

Bucket capacity: 2.9 m³

Bucket capacity min.: 2.9 m³

Steering mode: KL

Transport length: 7.656 m

Transport width: 2.675 m

Transport height: 3.669 m

Travel speed: 40 km/h

Max. discharge height: 2.834 m

Turning radius outside: 6.133 m

Engine manuf.: Caterpillar

Engine type: C7.1 Acert

Engine power: 140 kW

Displacement: 7.1 l

Max. torque: 852 Nm

Emission level: EU V

More technical details, like: bucket capacity max., lifting force, model series, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: Yes
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 938M FAQ

When was the Caterpillar 938M manufactured?

The Caterpillar 938M was first produced in 2020.

How much does the Caterpillar 938M wheel loader weigh?

The Caterpillar 938M wheel loader weighs 16.4 tons.

What are the transport dimensions of the Caterpillar 938M wheel loader?

The Caterpillar 938M has a transport length of 7.66 meters, a transport width of 2.68 meters, and a transport height of 3.67 meters.

What is the travel speed of the Caterpillar 938M wheel loader?

The Caterpillar 938M wheel loader has a travel speed of 40 km/h.

What is the standard tyre size of the Caterpillar 938M wheel loader?

The Caterpillar 938M wheel loader is equipped with standard tyres sized 20.5 R25.

What are the maneuverability specifications of the Caterpillar 938M wheel loader?

The Caterpillar 938M wheel loader has an articulated-frame steering mode and an outside turning radius of 6.133 meters.

What is the maximum discharge height of the Caterpillar 938M?

The Caterpillar 938M has a maximum discharge height of 2.83 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 938M?

The Caterpillar 938M's primary work tool bucket has a capacity of 2.9 cubic meters and a width of 2.75 meters.

How much is a Caterpillar 938M Wheel loader (2020u20132025) worth?

The residual value of the Caterpillar 938M depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
