907M Caterpillar 907M Specifications & Technical Data (2015—2022)

The Caterpillar 907M is a wheel loader manufactured by Caterpillar from 2015 to 2022. It has a weight of 5.75 tons and a transport…

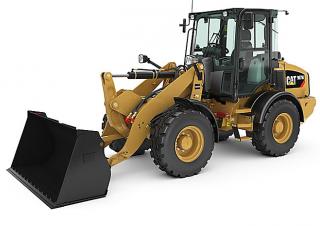

The Caterpillar 907M is a wheel loader manufactured by Caterpillar from 2015 to 2022. It has a weight of 5.75 tons and a transport length of 5.469 meters. The bucket capacity is 1 cubic meter, with a bucket width of 2.036 meters. The maximum discharge height is 2.478 meters, and it has a travel speed of 20 km/h. The transport width is 1.84 meters, and the transport height is 2.586 meters. The turning radius outside is 4.489 meters. The machine is equipped with a swing loader.

907M

Years of manufacture: 2015—2022

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 907M Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.75 t

Standard tyres: 405/70 R18

Bucket width: 2.036 m

Bucket capacity: 1 m³

Bucket capacity min.: 1 m³

Steering mode: KL

Transport length: 5.469 m

Transport width: 1.84 m

Transport height: 2.586 m

Travel speed: 20 km/h

Max. discharge height: 2.478 m

Turning radius outside: 4.489 m

Engine manuf.: Caterpillar

Engine type: C3.3B DIT

Engine power: 54.6 kW

Displacement: 3.3 l

Max. torque: 257 Nm

Cylinder bore x stroke: 94x120 mm

Emission level: Tier 4 f

More technical details, like: bucket capacity max., lifting force, model series, dimension lxwxh, revolutions at max torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: Yes
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 907M FAQ

When was the Caterpillar 907M manufactured?

The Caterpillar 907M was manufactured from 2015 to 2022.

How much does the Caterpillar 907M wheel loader weigh?

The Caterpillar 907M wheel loader weighs 5.75 tons.

What are the transport dimensions of the Caterpillar 907M wheel loader?

The Caterpillar 907M has a transport length of 5.47 meters, a transport width of 1.84 meters, and a transport height of 2.59 meters.

What is the travel speed of the Caterpillar 907M wheel loader?

The Caterpillar 907M wheel loader has a travel speed of 20 km/h.

What is the standard tyre size of the Caterpillar 907M wheel loader?

The Caterpillar 907M wheel loader is equipped with standard tyres sized 405/70 R18.

What are the maneuverability specifications of the Caterpillar 907M wheel loader?

The Caterpillar 907M wheel loader has an articulated-frame steering mode and an outside turning radius of 4.489 meters.

What is the maximum discharge height of the Caterpillar 907M wheel loader?

The Caterpillar 907M wheel loader has a maximum discharge height of 2.48 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 907M?

The Caterpillar 907M's bucket has a capacity of 1 cubic meter, a minimum capacity of 1 cubic meter, and a width of 2.04 meters.
