907 H2 Caterpillar 907 H2 Specifications & Technical Data (2013—2026)

The Caterpillar 907 H2 is a wheel loader manufactured since 2013. It has a weight of 5.81 tons and a transport length of 5.58 mete…

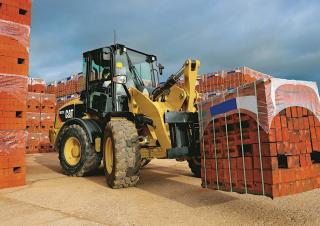

The Caterpillar 907 H2 is a wheel loader manufactured since 2013. It has a weight of 5.81 tons and a transport length of 5.58 meters. The bucket capacity is 1 cubic meter with a width of 2.03 meters. The maximum discharge height is 2.4 meters. It has a travel speed of 35 km/h and a transport width of 1.84 meters. The transport height is 2.58 meters. The lifting force is 42 kN and it has a turning radius outside of 4.51 meters.

907 H2

Years of manufacture: 2013—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 907 H2 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.81 t

Standard tyres: 405/70 SPT9

Bucket width: 2.03 m

Bucket capacity: 1 m³

Transport length: 5.58 m

Transport width: 1.84 m

Transport height: 2.58 m

Travel speed: 35 km/h

Max. discharge height: 2.4 m

Turning radius outside: 4.51 m

Lifting force: 42 kN

Engine manuf.: CAT

Engine type: C3.3B DIT

Engine power: 51 kW

Displacement: 3.3 l

Cylinder bore x stroke: 94x120 mm

Emission level: Tier 4

More technical details, like: bucket capacity min., bucket capacity max., steering mode, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

907 H2 Caterpillar Specification for Europe (EN)

Caterpillar 907 H2 FAQ

When was the Caterpillar 907 H2 manufactured?

The Caterpillar 907 H2 was first produced in 2013.

How much does the Caterpillar 907 H2 wheel loader weigh?

The Caterpillar 907 H2 wheel loader weighs 5.81 tons.

What are the transport dimensions of the Caterpillar 907 H2 wheel loader?

The Caterpillar 907 H2 has a transport length of 5.58 meters, a transport width of 1.84 meters, and a transport height of 2.58 meters.

What is the travel speed of the Caterpillar 907 H2 wheel loader?

The Caterpillar 907 H2 has a travel speed of 35 km/h.

What are the undercarriage specifications of the Caterpillar 907 H2 wheel loader?

The Caterpillar 907 H2 wheel loader is equipped with standard tyres sized 405/70 SPT9.

What is the turning radius of the Caterpillar 907 H2 wheel loader?

The Caterpillar 907 H2 wheel loader has an outside turning radius of 4.51 meters.

What is the lifting force of the Caterpillar 907 H2 wheel loader?

The Caterpillar 907 H2 wheel loader has a lifting force of 42 kN. No power rating data is provided for this model in the source information.

What is the maximum discharge height of the Caterpillar 907 H2?

The Caterpillar 907 H2 has a maximum discharge height of 2.4 meters.

What are the bucket specifications of the Caterpillar 907 H2 wheel loader?

The Caterpillar 907 H2 wheel loader has a bucket capacity of 1 cubic meter and a bucket width of 2.03 meters.
