906M Caterpillar 906M Specifications & Technical Data (2015—2022)

Model rating: 10,00 / 10

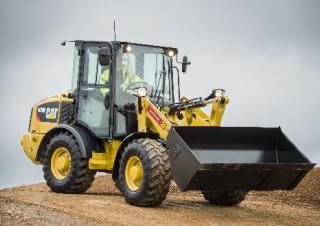

The Caterpillar 906M is a wheel loader manufactured from 2015 to 2022. It has a weight of 5.59 tons and a transport length of 5.47…

The Caterpillar 906M is a wheel loader manufactured from 2015 to 2022. It has a weight of 5.59 tons and a transport length of 5.47 meters. The bucket capacity is 0.9 cubic meters, with a bucket width of 1.88 meters. The maximum discharge height is 2.48 meters, and it has a travel speed of 20 km/h. The transport width is 1.84 meters, and the transport height is 2.46 meters. The turning radius outside is 4.42 meters. Special equipment includes a swing loader.

906M

Years of manufacture: 2015—2022

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 906M Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.59 t

Standard tyres: 405/70 R18

Bucket width: 1.88 m

Bucket capacity: 0.9 m³

Bucket capacity min.: 0.9 m³

Steering mode: KL

Transport length: 5.47 m

Transport width: 1.84 m

Transport height: 2.46 m

Travel speed: 20 km/h

Max. discharge height: 2.48 m

Turning radius outside: 4.42 m

Engine manuf.: Caterpillar

Engine type: C3.3B DIT

Engine power: 54.6 kW

Displacement: 3.3 l

Max. torque: 257 Nm

Cylinder bore x stroke: 94x120 mm

Emission level: Tier 4 f

More technical details, like: bucket capacity max., lifting force, model series, dimension lxwxh, revolutions at max torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: Yes
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 906M FAQ

When was the Caterpillar 906M manufactured?

The Caterpillar 906M was manufactured from 2015 to 2022.

How much does the Caterpillar 906M wheel loader weigh?

The Caterpillar 906M wheel loader weighs 5.59 tons.

What are the transport dimensions of the Caterpillar 906M wheel loader?

The Caterpillar 906M has a transport length of 5.47 meters, a transport width of 1.84 meters, and a transport height of 2.46 meters.

What is the travel speed of the Caterpillar 906M wheel loader?

The Caterpillar 906M wheel loader has a travel speed of 20 km/h.

What are the tyre specifications of the Caterpillar 906M wheel loader?

The Caterpillar 906M wheel loader is equipped with standard tyres sized 405/70 R18.

What are the maneuverability specifications of the Caterpillar 906M wheel loader?

The Caterpillar 906M wheel loader has an articulated-frame steering system and an outside turning radius of 4.42 meters.

What is the maximum discharge height of the Caterpillar 906M wheel loader?

The Caterpillar 906M wheel loader has a maximum discharge height of 2.48 meters.

What are the bucket specifications of the Caterpillar 906M wheel loader?

The Caterpillar 906M wheel loader has a bucket capacity of 0.9 cubic meters and a bucket width of 1.88 meters.
