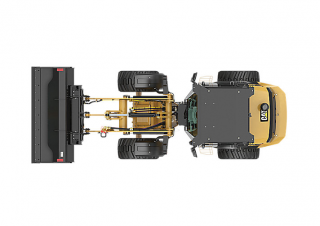

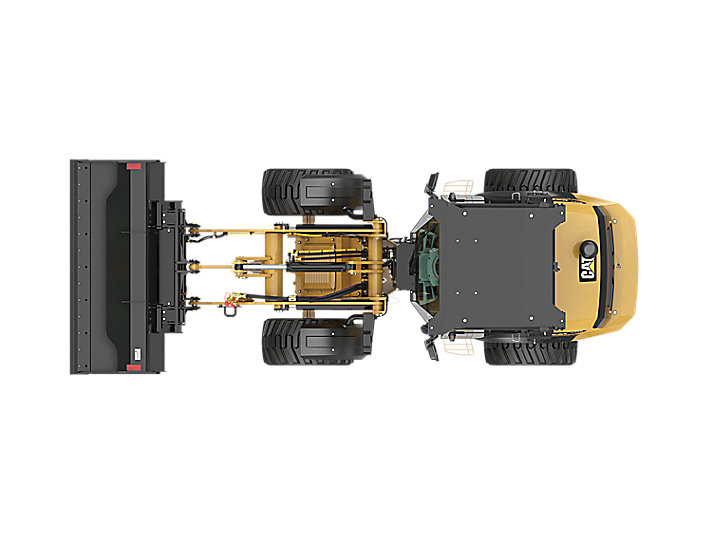

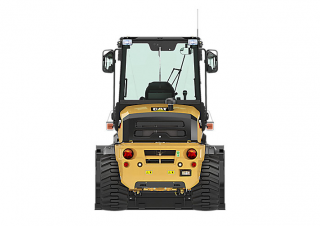

903D Caterpillar 903D Specifications & Technical Data (2019—2026)

The Caterpillar 903D is a wheel loader manufactured since 2019. It has a weight of 4.27 tons and a transport length of 4.79 meters…

The Caterpillar 903D is a wheel loader manufactured since 2019. It has a weight of 4.27 tons and a transport length of 4.79 meters. The bucket capacity is 1 cubic meter with a width of 1.77 meters. The maximum discharge height is 2.292 meters. It has a travel speed of 20 km/h and a transport width of 1.708 meters. The transport height is 2.51 meters. The lifting force is 27 kN and the turning radius outside is 4.007 meters. The bucket capacity can be a minimum of 1 cubic meter. It is equipped with air conditioning.

903D

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 903D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.27 t

Standard tyres: 15.5-16.5

Bucket width: 1.77 m

Bucket capacity: 1 m³

Bucket capacity min.: 1 m³

Transport length: 4.79 m

Transport width: 1.708 m

Transport height: 2.51 m

Travel speed: 20 km/h

Max. discharge height: 2.292 m

Turning radius outside: 4.007 m

Lifting force: 27 kN

Engine manuf.: Caterpillar

Engine type: C2.4

Engine power: 31 kW

Displacement: 2.4 l

Cylinder bore x stroke: 87x102 mm

Emission level: Tier 4 f

More technical details, like: bucket capacity max., steering mode, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

903D Caterpillar Specification for North America (EN)

Caterpillar 903D FAQ

When was the Caterpillar 903D manufactured?

The Caterpillar 903D was first produced in 2019.

How much does the Caterpillar 903D wheel loader weigh?

The Caterpillar 903D wheel loader weighs 4.27 tons.

What are the transport dimensions of the Caterpillar 903D wheel loader?

The Caterpillar 903D has a transport length of 4.79 meters, a transport width of 1.71 meters, and a transport height of 2.51 meters.

What is the travel speed of the Caterpillar 903D wheel loader?

The Caterpillar 903D wheel loader has a travel speed of 20 km/h.

What are the standard tyre specifications of the Caterpillar 903D?

The Caterpillar 903D is equipped with standard tyres sized 15.5-16.5.

What is the turning radius of the Caterpillar 903D wheel loader?

The Caterpillar 903D wheel loader has an outside turning radius of 4.007 meters.

What is the lifting force of the Caterpillar 903D wheel loader?

The Caterpillar 903D wheel loader has a lifting force of 27 kN.

What is the material handling capacity of the Caterpillar 903D in terms of discharge height?

The Caterpillar 903D has a maximum discharge height of 2.29 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 903D wheel loader?

The Caterpillar 903D wheel loader has a bucket with a capacity of 1 cubic meter, a minimum bucket capacity of 1 cubic meter, and a bucket width of 1.77 meters.
