902 Caterpillar 902 Specifications & Technical Data (1998—2004)

Model rating: 7,33 / 10

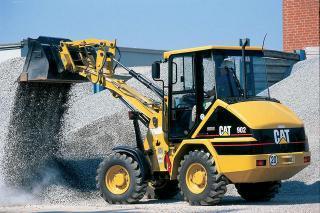

The Caterpillar 902 is a wheel loader manufactured from 1998 to 2004. It has a weight of 4.28 tons and a transport length of 4.915…

The Caterpillar 902 is a wheel loader manufactured from 1998 to 2004. It has a weight of 4.28 tons and a transport length of 4.915 meters. The bucket capacity is 0.6 cubic meters with a bucket width of 1.77 meters. The maximum discharge height is 2.34 meters and it has a travel speed of 20 km/h. The transport width and height are both 1.77 meters and 2.65 meters respectively. The lifting force of the machine is 35 kN and it has a turning radius outside of 3.815 meters. It is equipped with a quick hitch mechanism.

902

Years of manufacture: 1998—2004

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 902 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.28 t

Standard tyres: 12.5-18

Bucket width: 1.77 m

Bucket capacity: 0.6 m³

Bucket capacity min.: 0.6 m³

Steering mode: KL

Transport length: 4.915 m

Transport width: 1.77 m

Transport height: 2.65 m

Travel speed: 20 km/h

Max. discharge height: 2.34 m

Turning radius outside: 3.815 m

Lifting force: 35 kN

Engine manuf.: Caterpillar

Engine type: 3024 NA

Engine power: 34.2 kW

Revolutions at max torque: 2600 rpm

More technical details, like: bucket capacity max., model series, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download specalog and datasheets (PDF)

Caterpillar 902 FAQ

When was the Caterpillar 902 wheel loader manufactured?

The Caterpillar 902 wheel loader was manufactured from 1998 to 2004.

How much does the Caterpillar 902 wheel loader weigh?

The Caterpillar 902 wheel loader weighs 4.28 tons.

What are the transport dimensions of the Caterpillar 902 wheel loader?

The Caterpillar 902 wheel loader has a transport length of 4.92 meters, a transport width of 1.77 meters, and a transport height of 2.65 meters.

What is the travel speed of the Caterpillar 902 wheel loader?

The Caterpillar 902 wheel loader has a travel speed of 20 km/h.

What are the undercarriage specifications of the Caterpillar 902 wheel loader?

The Caterpillar 902 wheel loader is equipped with standard tyres sized 12.5-18.

What are the maneuverability specifications of the Caterpillar 902 wheel loader?

The Caterpillar 902 wheel loader has an articulated-frame steering system and an outside turning radius of 3.815 meters.

What is the lifting force of the Caterpillar 902 wheel loader?

The Caterpillar 902 wheel loader has a lifting force of 35 kN.

What is the maximum discharge height of the Caterpillar 902?

The Caterpillar 902 has a maximum discharge height of 2.34 meters.

What are the bucket specifications of the Caterpillar 902 wheel loader?

The Caterpillar 902 wheel loader has a bucket capacity of 0.6 cubic meters, with a minimum bucket capacity of 0.6 cubic meters, and a bucket width of 1.77 meters.
