PX 41 Cast Group PX 41 Specifications & Technical Data (2013—2015)

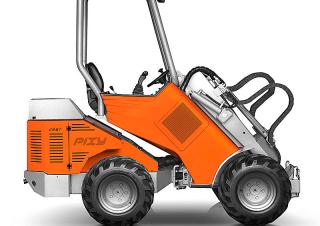

The Cast Group PX 41 is a wheel loader manufactured from 2013 to 2015. It has a weight of 1.21 tons and a transport length of 2.45…

The Cast Group PX 41 is a wheel loader manufactured from 2013 to 2015. It has a weight of 1.21 tons and a transport length of 2.454 meters. The maximum discharge height is 2.7 meters, and the transport width is 1.2 meters. The transport height is 2.1 meters, and it has a lifting force of 1000 kN. The turning radius outside is 2.396 meters, and it is equipped with a quick hitch mechanism and telescopic feature.

PX 41

Years of manufacture: 2013—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - PX 41 Cast Group

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.21 t

Standard tyres: 26x12.00-12

Steering mode: KL

Transport length: 2.454 m

Transport width: 1.2 m

Transport height: 2.1 m

Travel speed: 16 km/h

Max. discharge height: 2.7 m

Turning radius outside: 2.396 m

Lifting force: 1000 kN

Model series: PX

Engine manuf.: Isuzu

Engine type: 3 CE 1

Engine power: 28 kW

Displacement: 1.642 l

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

PX 41 Cast Group Specification for Europe (DE)

Cast Group PX 41 FAQ

When was the Cast Group PX 41 manufactured?

The Cast Group PX 41 was manufactured from 2013 to 2015.

How much does the Cast Group PX 41 wheel loader weigh?

The Cast Group PX 41 wheel loader weighs 1.21 tons.

What are the transport dimensions of the Cast Group PX 41 wheel loader?

The Cast Group PX 41 has a transport length of 2.45 meters, a transport width of 1.2 meters, and a transport height of 2.1 meters.

What is the travel speed of the Cast Group PX 41 wheel loader?

The Cast Group PX 41 has a travel speed of 16 km/h.

What is the standard tyre size of the Cast Group PX 41?

The Cast Group PX 41 has standard tyres sized 26x12.00-12.

What are the maneuverability specifications of the Cast Group PX 41 wheel loader?

The Cast Group PX 41 wheel loader has an articulated-frame steering system and an outside turning radius of 2.396 meters.

What is the lifting force of the Cast Group PX 41 wheel loader?

The Cast Group PX 41 wheel loader has a lifting force of 1000 kN.

What is the maximum discharge height of the Cast Group PX 41?

The Cast Group PX 41 has a maximum discharge height of 2.7 meters.
