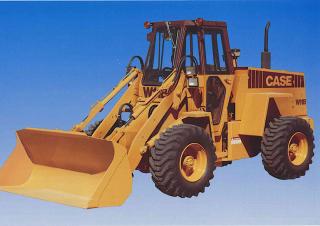

W11B Case W11B Specifications & Technical Data (1991—2020)

The Case W11B is a wheel loader manufactured since 1991. It has a weight of 5.56 tons and a transport length of 5.23 meters. The b…

The Case W11B is a wheel loader manufactured since 1991. It has a weight of 5.56 tons and a transport length of 5.23 meters. The bucket capacity is 0.57 cubic meters, and the maximum discharge height is 2.62 meters. It has a travel speed of 36.4 km/h and a transport width of 1.79 meters. The transport height is 2.45 meters, and the turning radius outside is 8.33 meters.

Wheel Loaders Case W11B

Technical specs - W11B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.56 t
Standard tyres
12.5x20 XLT
Bucket capacity
0.57 m³
Transport length
5.23 m
Transport width
1.79 m
Transport height
2.45 m
Travel speed
36.4 km/h
Max. discharge height
2.62 m
Turning radius outside
8.33 m
Model series
B
Engine manuf.
Case
Engine type
4-390
Engine power
51 kW
Displacement
3.92 l
Revolutions at max torque
1200 rpm
Max. torque
244 Nm
No. of cylinders
4
Cylinder bore x stroke
102x120 mm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case W11B FAQ

When was the Case W11B manufactured?

The Case W11B was manufactured from 1991 to 2020.

How much does the Case W11B wheel loader weigh?

The Case W11B wheel loader weighs 5.56 tons.

What are the transport dimensions of the Case W11B wheel loader?

The Case W11B has a transport length of 5.23 meters, a transport width of 1.79 meters, and a transport height of 2.45 meters.

What is the travel speed of the Case W11B wheel loader?

The Case W11B wheel loader has a travel speed of 36.4 km/h.

What are the undercarriage specifications of the Case W11B wheel loader?

The Case W11B wheel loader is equipped with standard tyres sized 12.5x20 XLT.

What is the turning radius of the Case W11B wheel loader?

The Case W11B wheel loader has an outside turning radius of 8.33 meters.

What is the maximum discharge height of the Case W11B?

The Case W11B has a maximum discharge height of 2.62 meters.

What is the bucket capacity of the Case W11B wheel loader?

The Case W11B wheel loader has a bucket capacity of 0.57 cubic meters.

How much is a Case W11B Wheel loader (1991u20132020) worth?

The residual value of the Case W11B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
