921G Case 921G Specifications & Technical Data (2017—2020)

The Case 921G is a wheel loader manufactured by Case from 2017 to 2020. It has a weight of 21.53 tons and a transport length of 8.…

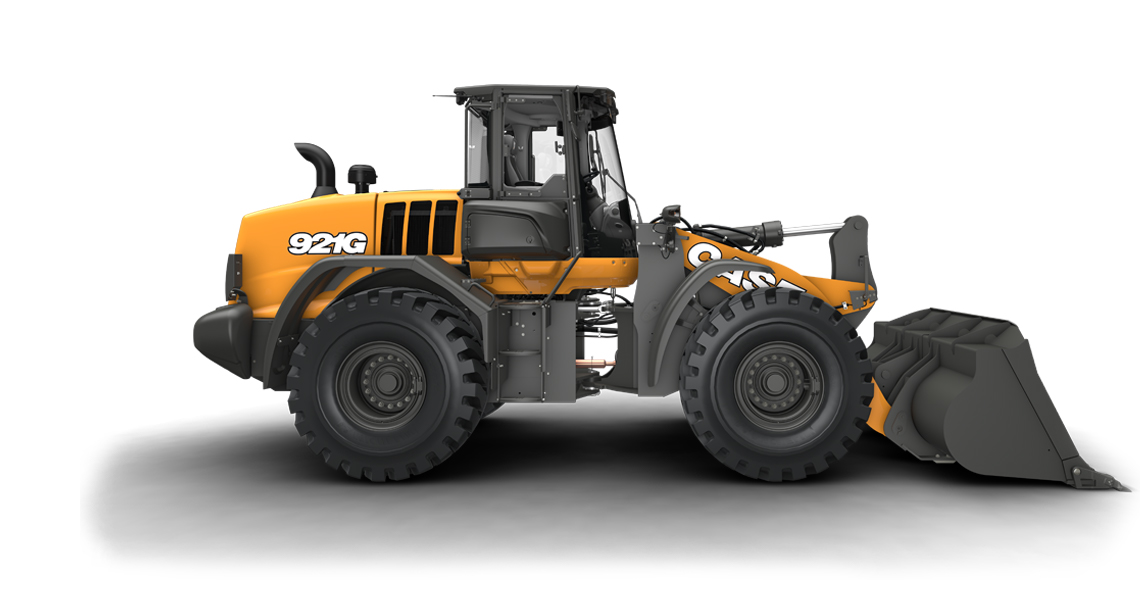

The Case 921G is a wheel loader manufactured by Case from 2017 to 2020. It has a weight of 21.53 tons and a transport length of 8.26 meters. The bucket capacity is 3 cubic meters with a width of 2.95 meters. The maximum discharge height is 2.87 meters. It has a travel speed of 40 km/h and a transport width of 2.83 meters. The transport height is 3.46 meters and the turning radius outside is 6.68 meters. The wheel loader is equipped with air conditioning.

921G

Years of manufacture: 2017—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 921G Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 21.53 t

Standard tyres: 23.5 R25 L5

Bucket width: 2.95 m

Bucket capacity: 3 m³

Bucket capacity min.: 3 m³

Steering mode: KL

Transport length: 8.26 m

Transport width: 2.83 m

Transport height: 3.46 m

Travel speed: 40 km/h

Max. discharge height: 2.87 m

Turning radius outside: 6.68 m

Model series: G

Engine manuf.: CNH

Engine type: N67

Engine power: 190 kW

Displacement: 6.7 l

Revolutions at max torque: 1600 rpm

Max. torque: 1300 Nm

No. of cylinders: 6

Emission level: EU Stage IV and US Tier IV Final

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Case 921G FAQ

When was the Case 921G manufactured?

The Case 921G was manufactured from 2017 to 2020.

How much does the Case 921G weigh?

The Case 921G weighs 21.53 tons.

What are the transport dimensions of the Case 921G wheel loader?

The Case 921G has a transport length of 8.26 meters, a transport width of 2.83 meters, and a transport height of 3.46 meters.

What is the travel speed of the Case 921G wheel loader?

The Case 921G wheel loader has a travel speed of 40 km/h.

What is the standard tyre size of the Case 921G wheel loader?

The Case 921G wheel loader is equipped with standard tyres sized 23.5 R25 L5.

What are the maneuverability specifications of the Case 921G wheel loader?

The Case 921G wheel loader has an articulated-frame steering system and an outside turning radius of 6.68 meters.

What is the maximum discharge height of the Case 921G wheel loader?

The Case 921G wheel loader has a maximum discharge height of 2.87 meters.

What are the specifications of the primary work tool bucket on the Case 921G wheel loader?

The Case 921G wheel loader has a bucket with a capacity of 3 cubic meters, a minimum bucket capacity of 3 cubic meters, and a bucket width of 2.95 meters.
