821G Case 821G Specifications & Technical Data (2017—2020)

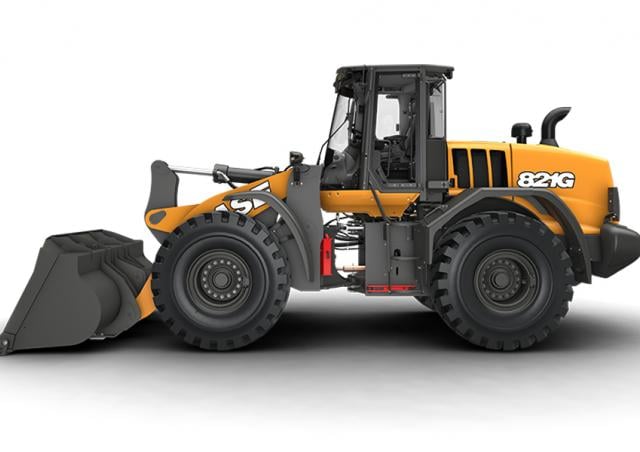

The Case 821G is a wheel loader manufactured by Case from 2017 to 2020. It has a weight of 19.26 tons and a transport length of 8.…

The Case 821G is a wheel loader manufactured by Case from 2017 to 2020. It has a weight of 19.26 tons and a transport length of 8.25 meters. The bucket capacity is 3.6 cubic meters with a width of 2.94 meters. The maximum discharge height is 2.9 meters. It has a travel speed of 40 km/h and a transport width of 2.83 meters. The transport height is 3.46 meters and the turning radius outside is 6.68 meters. The bucket capacity is a minimum of 3.6 cubic meters. It is equipped with air conditioning.

821G

Years of manufacture: 2017—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 821G Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 19.26 t

Standard tyres: 23.5 R25 L3

Bucket width: 2.94 m

Bucket capacity: 3.6 m³

Bucket capacity min.: 3.6 m³

Steering mode: KL

Transport length: 8.25 m

Transport width: 2.83 m

Transport height: 3.46 m

Travel speed: 40 km/h

Max. discharge height: 2.9 m

Turning radius outside: 6.68 m

Model series: G

Engine manuf.: CNH

Engine type: N67

Engine power: 172 kW

Displacement: 6.7 l

Revolutions at max torque: 1800 rpm

Max. torque: 1184 Nm

No. of cylinders: 6

Emission level: EU Stage IV and US Tier IV Final

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Case 821G FAQ

When was the Case 821G manufactured?

The Case 821G was manufactured from 2017 to 2020.

How much does the Case 821G wheel loader weigh?

The Case 821G wheel loader weighs 19.26 tons.

What are the transport dimensions of the Case 821G wheel loader?

The Case 821G has a transport length of 8.25 meters, a transport width of 2.83 meters, and a transport height of 3.46 meters.

What is the travel speed of the Case 821G wheel loader?

The Case 821G wheel loader has a travel speed of 40 km/h.

What are the standard tyre specifications of the Case 821G wheel loader?

The Case 821G wheel loader is equipped with standard tyres sized 23.5 R25 L3.

What are the maneuverability specifications of the Case 821G wheel loader?

The Case 821G wheel loader has an articulated-frame steering system and an outside turning radius of 6.68 meters.

What is the maximum discharge height of the Case 821G?

The Case 821G has a maximum discharge height of 2.9 meters.

What are the bucket specifications of the Case 821G wheel loader?

The Case 821G wheel loader has a bucket capacity of 3.6 cubic meters and a bucket width of 2.94 meters.

How much is a Case 821G Wheel loader (2017u20132020) worth?

The residual value of the Case 821G depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
