821 E Case 821 E Specifications & Technical Data (2007—2012)

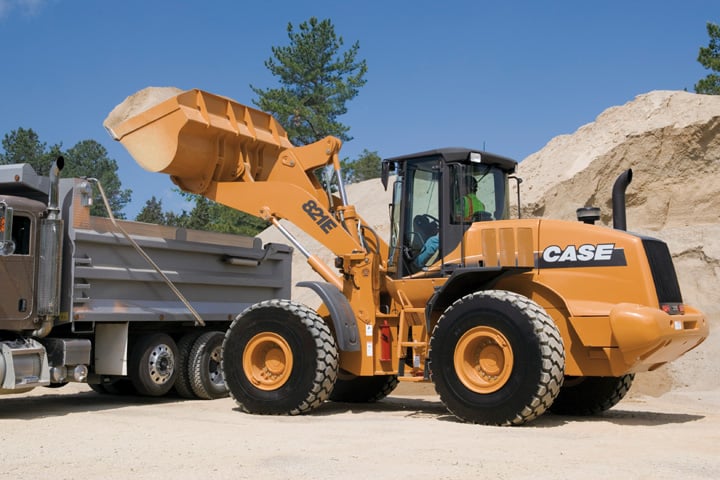

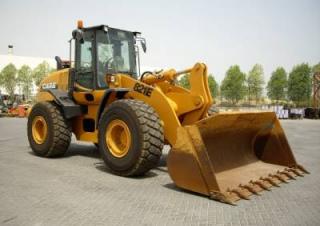

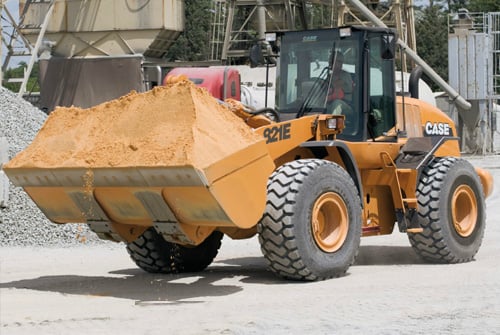

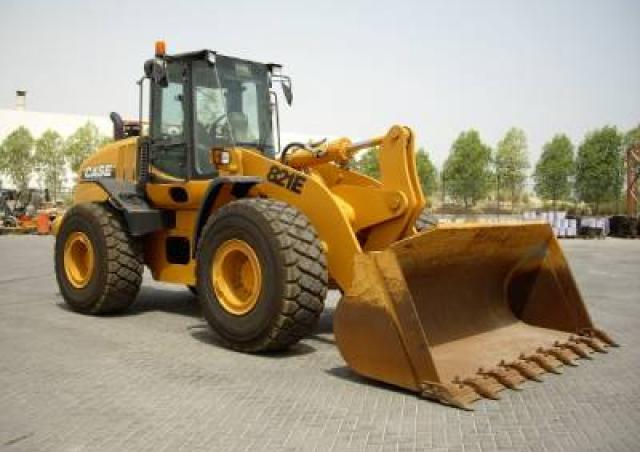

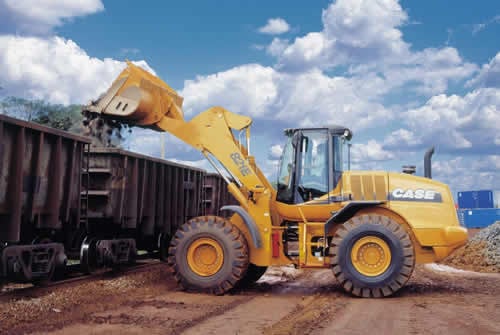

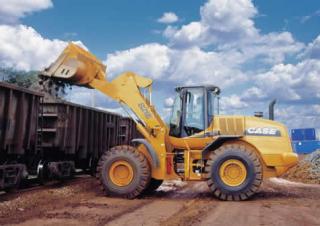

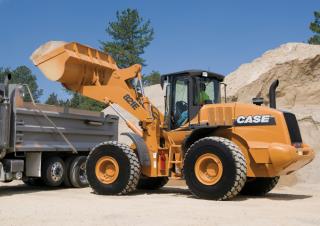

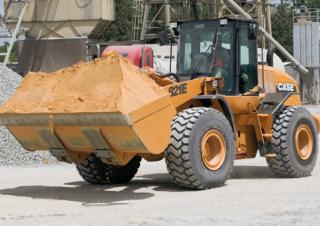

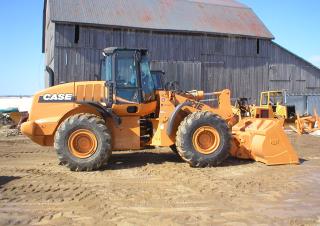

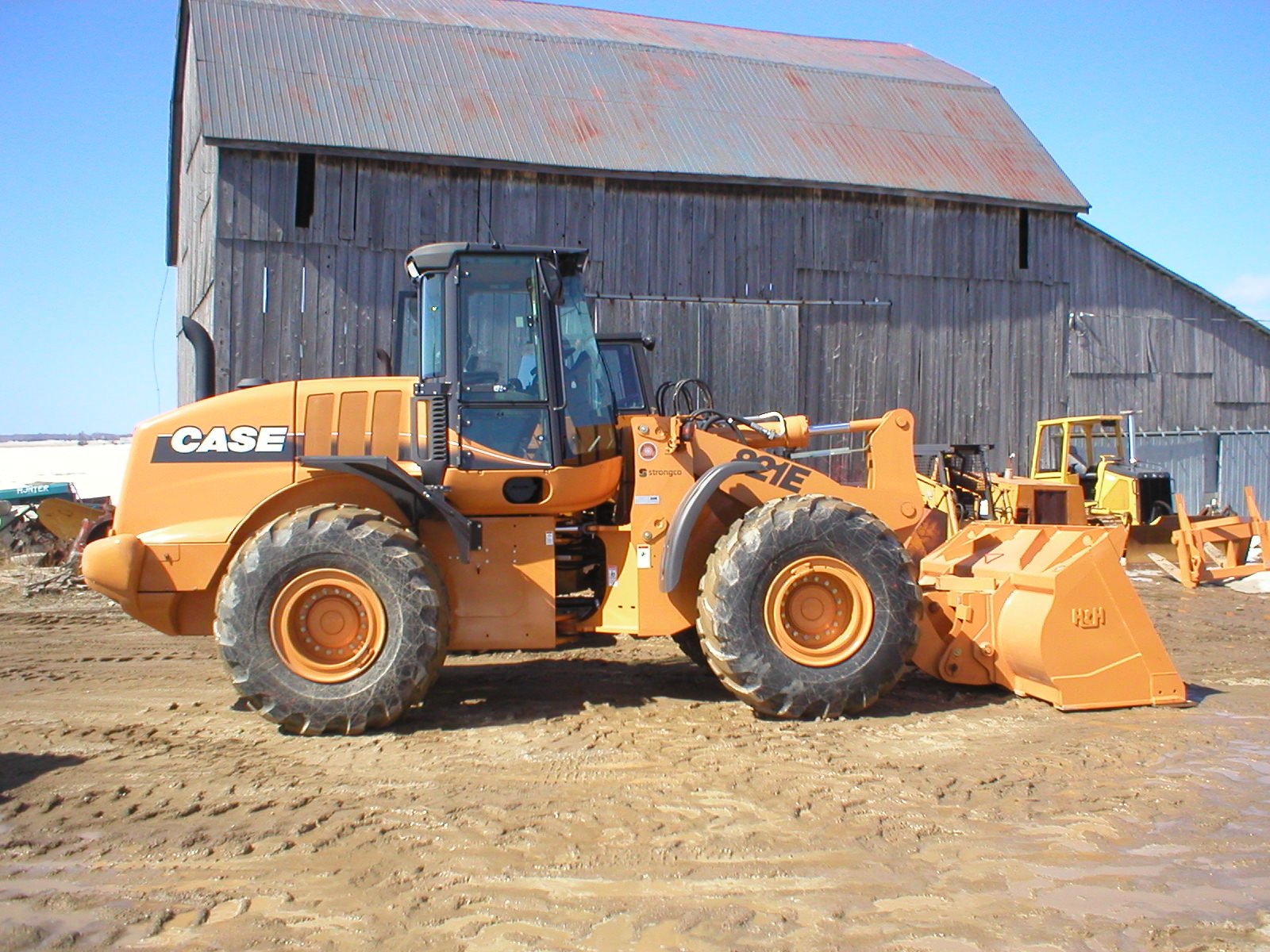

The Case 821 E is a wheel loader manufactured from 2007 to 2012. It has a weight of 17.17 tons and a transport length of 7.99 mete…

The Case 821 E is a wheel loader manufactured from 2007 to 2012. It has a weight of 17.17 tons and a transport length of 7.99 meters. The bucket capacity is 2.7 cubic meters, with a bucket width of 2.7 meters. The maximum discharge height is 4 meters, and it has a travel speed of 38 km/h. The transport width is 3.05 meters, and the transport height is 3.45 meters. It has a lifting force of 151 kN and a turning radius outside of 6.03 meters. Special equipment includes air conditioning.

821 E

Years of manufacture: 2007—2012

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 821 E Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 17.17 t

Standard tyres: 23.5 R 25

Bucket width: 2.7 m

Bucket capacity: 2.7 m³

Bucket capacity min.: 2.7 m³

Steering mode: KL

Transport length: 7.99 m

Transport width: 3.05 m

Transport height: 3.45 m

Travel speed: 38 km/h

Max. discharge height: 4 m

Turning radius outside: 6.03 m

Lifting force: 151 kN

Model series: E

Engine manuf.: Case

Engine type: 667TA-EBD

Engine power: 157 kW

Displacement: 6.7 l

Revolutions at max torque: 1800 rpm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Case 821 E FAQ

When was the Case 821 E manufactured?

The Case 821 E was manufactured from 2007 to 2012.

How much does the Case 821 E wheel loader weigh?

The Case 821 E wheel loader weighs 17.17 tons.

What are the transport dimensions of the Case 821 E wheel loader?

The Case 821 E has a transport length of 7.99 meters, a transport width of 3.05 meters, and a transport height of 3.45 meters.

What is the travel speed of the Case 821 E wheel loader?

The Case 821 E wheel loader has a travel speed of 38 km/h.

What are the standard tyre specifications of the Case 821 E wheel loader?

The Case 821 E wheel loader is equipped with standard tyres sized 23.5 R 25.

What are the maneuverability specifications of the Case 821 E wheel loader?

The Case 821 E wheel loader has an articulated-frame steering system and an outside turning radius of 6.03 meters.

What is the lifting force of the Case 821 E wheel loader?

The Case 821 E wheel loader has a lifting force of 151 kN.

What is the maximum discharge height of the Case 821 E wheel loader?

The Case 821 E wheel loader has a maximum discharge height of 4 meters.

What are the specifications of the bucket on the Case 821 E wheel loader?

The Case 821 E wheel loader has a bucket capacity of 2.7 cubic meters, a minimum bucket capacity of 2.7 cubic meters, and a bucket width of 2.7 meters.
