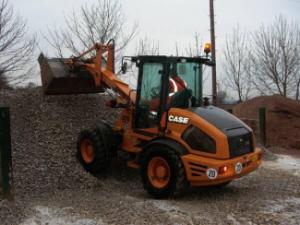

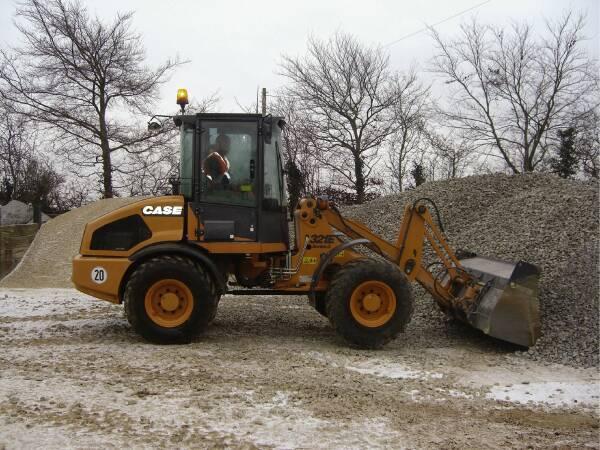

321 E S-3 Case 321 E S-3 Specifications & Technical Data (2008—2014)

The Case 321 E S-3 Wheel Loader, manufactured from 2008 to 2014, is a construction machine with a weight of 5.89 tons. It has a tr…

The Case 321 E S-3 Wheel Loader, manufactured from 2008 to 2014, is a construction machine with a weight of 5.89 tons. It has a transport length of 5.75 meters and a bucket capacity of 1.1 cubic meters. The bucket width is 2.1 meters, and the maximum discharge height is 3.46 meters. With a travel speed of 20 km/h, it has a transport width of 2.02 meters and a transport height of 2.81 meters. The lifting force of this machine is 60.5 kN, and it has a turning radius outside of 4.45 meters. The minimum bucket capacity is also 1.1 cubic meters.

321 E S-3

Years of manufacture: 2008—2014

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 321 E S-3 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.89 t

Standard tyres: 14.5x29

Bucket width: 2.1 m

Bucket capacity: 1.1 m³

Bucket capacity min.: 1.1 m³

Steering mode: KL

Transport length: 5.75 m

Transport width: 2.02 m

Transport height: 2.81 m

Travel speed: 20 km/h

Max. discharge height: 3.46 m

Turning radius outside: 4.45 m

Lifting force: 60.5 kN

Model series: E

Engine manuf.: CNH

Engine type: F5C-E9454C

Engine power: 81 kW

Displacement: 3.2 l

Revolutions at max torque: 2500 rpm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Case 321 E S-3 FAQ

When was the Case 321 E S-3 manufactured?

The Case 321 E S-3 was manufactured from 2008 to 2014.

How much does the Case 321 E S-3 wheel loader weigh?

The Case 321 E S-3 wheel loader weighs 5.89 tons.

What are the transport dimensions of the Case 321 E S-3 wheel loader?

The Case 321 E S-3 has a transport length of 5.75 meters, a transport width of 2.02 meters, and a transport height of 2.81 meters.

What is the travel speed of the Case 321 E S-3 wheel loader?

The Case 321 E S-3 has a travel speed of 20 km/h.

What are the standard tyre specifications of the Case 321 E S-3 wheel loader?

The Case 321 E S-3 wheel loader is equipped with standard tyres sized 14.5x29.

What are the maneuverability specifications of the Case 321 E S-3 wheel loader?

The Case 321 E S-3 has an articulated-frame steering mode and an outside turning radius of 4.45 meters.

What is the power rating of the Case 321 E S-3 wheel loader?

The source data does not provide power rating information for the Case 321 E S-3 wheel loader.

What is the material handling capacity of the Case 321 E S-3 in terms of discharge height?

The Case 321 E S-3 has a maximum discharge height of 3.46 meters.

What are the specifications of the bucket on the Case 321 E S-3 wheel loader?

The Case 321 E S-3 wheel loader has a bucket with a capacity of 1.1 cubic meters, a minimum bucket capacity of 1.1 cubic meters, and a bucket width of 2.1 meters.
