321 B Case 321 B Specifications & Technical Data (1995—2001)

Model rating: 8,00 / 10

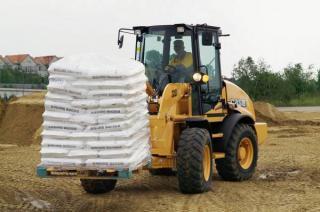

The Case 321 B Wheel Loader, manufactured from 1995 to 2001, is a construction machine with a weight of 5.8 tons. It has a transpo…

The Case 321 B Wheel Loader, manufactured from 1995 to 2001, is a construction machine with a weight of 5.8 tons. It has a transport length of 5.59 meters and a bucket capacity of 1 cubic meter. The maximum discharge height is 3.34 meters, and it can travel at a speed of 35 km/h. The transport width is 1.85 meters, and the transport height is 2.8 meters. With a lifting force of 57 kN, it has a turning radius outside of 4.45 meters. The minimum bucket capacity is also 1 cubic meter.

321 B

Years of manufacture: 1995—2001

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 321 B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.8 t

Standard tyres: 16/70x24

Bucket capacity: 1 m³

Bucket capacity min.: 1 m³

Steering mode: KL

Transport length: 5.59 m

Transport width: 1.85 m

Transport height: 2.8 m

Travel speed: 35 km/h

Max. discharge height: 3.34 m

Turning radius outside: 4.45 m

Lifting force: 57 kN

Model series: B

Engine manuf.: Perkins

Engine type: 1004.4

Engine power: 54 kW

Displacement: 4.23 l

Revolutions at max torque: 2200 rpm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

321 B Case Specification for Europe (DE)

Case 321 B FAQ

When was the Case 321 B manufactured?

The Case 321 B was manufactured from 1995 to 2001.

How much does the Case 321 B wheel loader weigh?

The Case 321 B wheel loader weighs 5.8 tons.

What are the transport dimensions of the Case 321 B wheel loader?

The Case 321 B has a transport length of 5.59 meters, a transport width of 1.85 meters, and a transport height of 2.8 meters.

What is the travel speed of the Case 321 B wheel loader?

The Case 321 B has a travel speed of 35 km/h.

What is the standard tyre size of the Case 321 B wheel loader?

The Case 321 B wheel loader is equipped with standard tyres sized 16/70x24.

What are the maneuverability specifications of the Case 321 B wheel loader?

The Case 321 B wheel loader has an articulated-frame steering mode and an outside turning radius of 4.45 meters.

What power ratings are available for the Case 321 B wheel loader?

The Case 321 B wheel loader does not have power ratings listed, but it has a lifting force of 57 kN.

What is the maximum discharge height of the Case 321 B?

The Case 321 B has a maximum discharge height of 3.34 meters.

What is the bucket capacity of the Case 321 B wheel loader?

The bucket capacity of the Case 321 B wheel loader is 1 cubic meter.
