221 D Case 221 D Specifications & Technical Data (2002—2005)

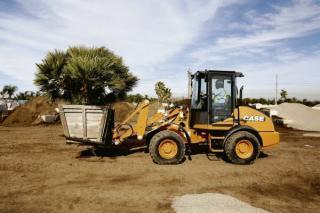

The Case 221 D Wheel Loader, manufactured from 2002 to 2005, is a construction machine with a weight of 5.3 tons. It has a transpo…

The Case 221 D Wheel Loader, manufactured from 2002 to 2005, is a construction machine with a weight of 5.3 tons. It has a transport length of 5.4 meters and a transport width of 2.05 meters. The bucket capacity ranges from 0.7 to 1.1 cubic meters, with a bucket width of 2.05 meters. The maximum discharge height is 3.18 meters, and it has a lifting force of 47.8 kN. The travel speed of this wheel loader is 35 km/h. It has a transport height of 2.8 meters and a turning radius outside of 4.3 meters. Additionally, it is equipped with a quick hitch mechanism.

221 D

Years of manufacture: 2002—2005

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 221 D Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.3 t

Standard tyres: 365/80 R 20

Bucket width: 2.05 m

Bucket capacity: 0.7 m³

Bucket capacity min.: 0.7 m³

Bucket capacity max.: 1.1 m³

Steering mode: KL

Transport length: 5.4 m

Transport width: 2.05 m

Transport height: 2.8 m

Travel speed: 35 km/h

Max. discharge height: 3.18 m

Turning radius outside: 4.3 m

Lifting force: 47.8 kN

Model series: D

Engine manuf.: Perkins

Engine type: 704.3

Engine power: 42 kW

Displacement: 3 l

Revolutions at max torque: 2300 rpm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

221 D Case Specification for Europe (DE)

Case 221 D FAQ

When was the Case 221 D manufactured?

The Case 221 D was manufactured from 2002 to 2005.

How much does the Case 221 D wheel loader weigh?

The Case 221 D wheel loader weighs 5.3 tons.

What are the transport dimensions of the Case 221 D wheel loader?

The Case 221 D wheel loader has a transport length of 5.4 meters, a transport width of 2.05 meters, and a transport height of 2.8 meters.

What is the travel speed of the Case 221 D wheel loader?

The Case 221 D wheel loader has a travel speed of 35 km/h.

What are the standard tyre specifications of the Case 221 D wheel loader?

The Case 221 D wheel loader is equipped with standard tyres sized 365/80 R 20.

What are the maneuverability specifications of the Case 221 D wheel loader?

The Case 221 D wheel loader has an articulated-frame steering system and an outside turning radius of 4.3 meters.

What is the power rating of the Case 221 D wheel loader?

The source data does not provide power rating information for the Case 221 D wheel loader.

What is the maximum discharge height of the Case 221 D?

The Case 221 D has a maximum discharge height of 3.18 meters.

What are the specifications of the bucket on the Case 221 D wheel loader?

The Case 221 D wheel loader has a bucket with a capacity ranging from 0.7 to 1.1 cubic meters and a bucket width of 2.05 meters.
