21F Case 21F Specifications & Technical Data (2014—2020)

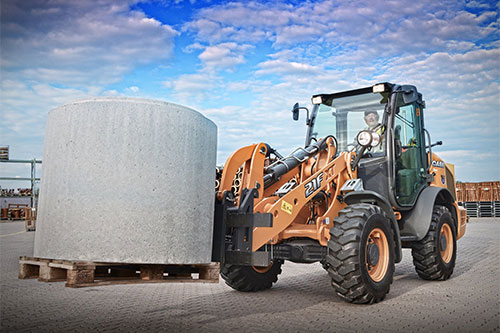

The Case 21F is a wheel loader manufactured from 2014 to 2020. It has a weight of 5.4 tons and a transport length of 5.28 meters. …

The Case 21F is a wheel loader manufactured from 2014 to 2020. It has a weight of 5.4 tons and a transport length of 5.28 meters. The bucket capacity is 1 cubic meter, with a bucket width of 1.9 meters. The maximum discharge height is 2.49 meters, and it can travel at a speed of 20 km/h. The transport width and height are both 1.9 meters. It has a lifting force of 42.6 kN and a turning radius outside of 3.75 meters. Special equipment includes a quick hitch hydraulic mechanism.

21F

Years of manufacture: 2014—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 21F Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.4 t

Standard tyres: 12.5-18

Bucket width: 1.9 m

Bucket capacity: 1 m³

Bucket capacity min.: 1 m³

Steering mode: KL

Transport length: 5.28 m

Transport width: 1.9 m

Transport height: 2.46 m

Travel speed: 20 km/h

Max. discharge height: 2.49 m

Turning radius outside: 3.75 m

Lifting force: 42.6 kN

Model series: F

Engine manuf.: CNH

Engine type: F5H

Engine power: 43 kW

Displacement: 3.4 l

Revolutions at max torque: 2100 rpm

Max. torque: 245 Nm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Case 21F FAQ

When was the Case 21F manufactured?

The Case 21F was manufactured from 2014 to 2020.

How much does the Case 21F wheel loader weigh?

The Case 21F wheel loader weighs 5.4 tons.

What are the transport dimensions of the Case 21F wheel loader?

The Case 21F has a transport length of 5.28 meters, a transport width of 1.9 meters, and a transport height of 2.46 meters.

What is the travel speed of the Case 21F wheel loader?

The Case 21F wheel loader has a travel speed of 20 km/h.

What are the undercarriage specifications of the Case 21F wheel loader?

The Case 21F wheel loader is equipped with standard tyres sized 12.5-18.

What are the maneuverability specifications of the Case 21F wheel loader?

The Case 21F wheel loader has an articulated-frame steering mode and an outside turning radius of 3.75 meters.

What is the lifting force of the Case 21F wheel loader?

The Case 21F wheel loader has a lifting force of 42.6 kN.

What is the maximum discharge height of the Case 21F?

The Case 21F has a maximum discharge height of 2.49 meters.

What are the bucket specifications of the Case 21F wheel loader?

The Case 21F wheel loader has a bucket capacity of 1 cubic meter, a minimum bucket capacity of 1 cubic meter, and a bucket width of 1.9 meters.
