21 F Case 21 F Specifications & Technical Data (2021—2026)

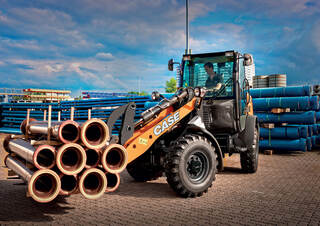

The Case 21F is a wheel loader manufactured since 2021. It has a weight of 5.3 tons and a transport length of 5.334 meters. The bu…

The Case 21F is a wheel loader manufactured since 2021. It has a weight of 5.3 tons and a transport length of 5.334 meters. The bucket capacity is 0.7 cubic meters, with a bucket width of 1.9 meters. The maximum discharge height is 3.243 meters, and it has a travel speed of 20 km/h. The transport width is 1.846 meters, and the transport height is 2.711 meters. It has a lifting force of 42.6 kN and a turning radius outside of 4.15 meters. Special equipment includes a quick hitch hydraulic mechanism.

21 F

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 21 F Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.3 t

Standard tyres: 335/80 R 18

Bucket width: 1.9 m

Bucket capacity: 0.7 m³

Bucket capacity min.: 0.7 m³

Steering mode: KL

Transport length: 5.334 m

Transport width: 1.846 m

Transport height: 2.711 m

Travel speed: 20 km/h

Max. discharge height: 3.243 m

Turning radius outside: 4.15 m

Lifting force: 42.6 kN

Model series: F

Engine manuf.: CNH

Engine type: F5H

Engine power: 43 kW

Displacement: 3.4 l

Revolutions at max torque: 2100 rpm

Max. torque: 245 Nm

Emission level: V

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Case 21 F FAQ

When was the Case 21 F manufactured?

The Case 21 F was first produced in 2021.

How much does the Case 21 F wheel loader weigh?

The Case 21 F wheel loader weighs 5.3 tons.

What are the transport dimensions of the Case 21 F wheel loader?

The Case 21 F wheel loader has a transport length of 5.33 meters, a transport width of 1.85 meters, and a transport height of 2.71 meters.

What is the travel speed of the Case 21 F wheel loader?

The Case 21 F wheel loader has a travel speed of 20 km/h.

What are the undercarriage tyre specifications of the Case 21 F wheel loader?

The Case 21 F wheel loader is equipped with standard tyres sized 335/80 R 18.

What are the maneuverability specifications of the Case 21 F wheel loader?

The Case 21 F wheel loader has an articulated-frame steering system and an outside turning radius of 4.15 meters.

What is the lifting force rating of the Case 21 F wheel loader?

The Case 21 F wheel loader has a lifting force of 42.6 kN.

What is the maximum discharge height of the Case 21 F?

The Case 21 F has a maximum discharge height of 3.24 meters.

What are the specifications of the primary work tool bucket on the Case 21 F wheel loader?

The Case 21 F wheel loader has a bucket with a capacity of 0.7 cubic meters, a minimum bucket capacity of 0.7 cubic meters, and a bucket width of 1.9 meters.
