21 E Case 21 E Specifications & Technical Data (2009—2025)

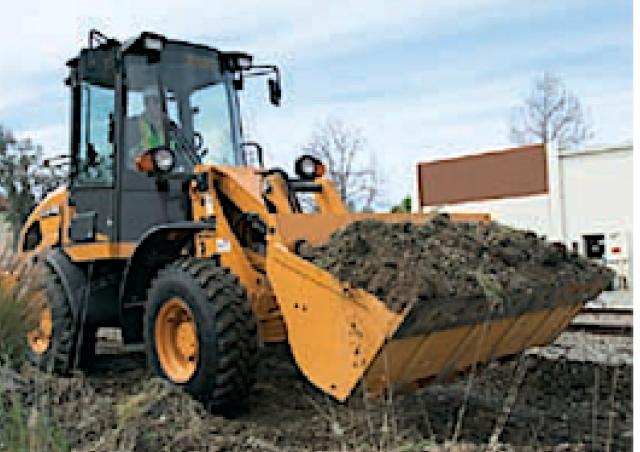

The Case 21 E is a wheel loader manufactured by Case since 2009. It has a weight of 4.615 tons and a transport length of 5.31 mete…

The Case 21 E is a wheel loader manufactured by Case since 2009. It has a weight of 4.615 tons and a transport length of 5.31 meters. The bucket width is 1.9 meters, and it has a travel speed of 20 km/h. The transport width is 1.85 meters, and the transport height is 2.18 meters. The turning radius outside is 3.84 meters. The maximum bucket capacity is 0.7 cubic meters, while the minimum bucket capacity is 0.56 cubic meters.

21 E

Years of manufacture: 2009—2025

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 21 E Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.615 t

Standard tyres: 335/80 R18

Bucket width: 1.9 m

Bucket capacity min.: 0.56 m³

Bucket capacity max.: 0.7 m³

Transport length: 5.31 m

Transport width: 1.85 m

Transport height: 2.18 m

Travel speed: 20 km/h

Turning radius outside: 3.84 m

Model series: E

Engine manuf.: Deutz

Engine type: F4M2011

Engine power: 38 kW

Displacement: 3.11 l

Max. torque: 180 Nm

No. of cylinders: 4

Cylinder bore x stroke: 94x112 mm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Case 21 E FAQ

When was the Case 21 E manufactured?

The Case 21 E was first produced in 2009.

How much does the Case 21 E wheel loader weigh?

The Case 21 E wheel loader weighs 4.62 tons.

What are the transport dimensions of the Case 21 E wheel loader?

The Case 21 E wheel loader has a transport length of 5.31 meters, a transport width of 1.85 meters, and a transport height of 2.18 meters.

What is the travel speed of the Case 21 E wheel loader?

The Case 21 E wheel loader has a travel speed of 20 km/h.

What are the tyre specifications of the Case 21 E wheel loader?

The Case 21 E wheel loader has standard tyres sized 335/80 R18.

What is the turning radius of the Case 21 E wheel loader?

The Case 21 E wheel loader has an outside turning radius of 3.84 meters.

What are the bucket specifications of the Case 21 E wheel loader?

The Case 21 E wheel loader has a bucket width of 1.9 meters, with a capacity ranging from 0.56 to 0.7 cubic meters.
