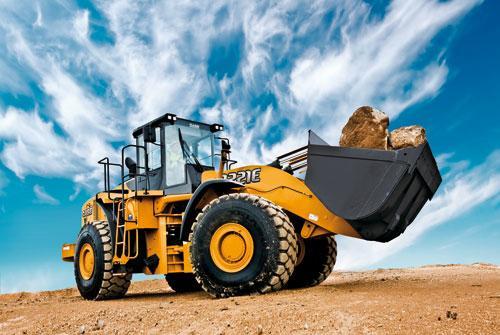

1221 E XR Case 1221 E XR Specifications & Technical Data (2008—2014)

The Case 1221 E XR is a wheel loader manufactured by Case from 2008 to 2014. It has a weight of 30.36 tons and a transport length …

The Case 1221 E XR is a wheel loader manufactured by Case from 2008 to 2014. It has a weight of 30.36 tons and a transport length of 9.56 meters. The bucket capacity is 5.6 cubic meters with a width of 3.45 meters. The maximum discharge height is 3.33 meters. It has a travel speed of 21.1 km/h and a transport width of 3.22 meters. The transport height is 3.84 meters and the turning radius outside is 7.59 meters. The special equipment includes air conditioning.

1221 E XR

Years of manufacture: 2008—2014

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 1221 E XR Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 30.36 t

Standard tyres: 29.5x25 22 PR

Bucket width: 3.45 m

Bucket capacity: 5.6 m³

Bucket capacity min.: 5.6 m³

Steering mode: KL

Transport length: 9.56 m

Transport width: 3.22 m

Transport height: 3.84 m

Travel speed: 21.1 km/h

Max. discharge height: 3.33 m

Turning radius outside: 7.59 m

Model series: E

Engine manuf.: Cummins

Engine type: QSM11

Engine power: 272 kW

Displacement: 10.8 l

Revolutions at max torque: 1400 rpm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Case 1221 E XR FAQ

When was the Case 1221 E XR manufactured?

The Case 1221 E XR was manufactured from 2008 to 2014.

How much does the Case 1221 E XR weigh?

The Case 1221 E XR weighs 30.36 tons.

What are the transport dimensions of the Case 1221 E XR wheel loader?

The Case 1221 E XR has a transport length of 9.56 meters, a transport width of 3.22 meters, and a transport height of 3.84 meters.

What is the travel speed of the Case 1221 E XR wheel loader?

The travel speed of the Case 1221 E XR wheel loader is 21.1 km/h.

What are the undercarriage specifications of the Case 1221 E XR wheel loader?

The Case 1221 E XR wheel loader is equipped with standard tyres sized 29.5x25 22 PR.

What are the maneuverability specifications of the Case 1221 E XR wheel loader?

The Case 1221 E XR features articulated-frame steering and has an outside turning radius of 7.59 meters.

What is the maximum discharge height of the Case 1221 E XR?

The Case 1221 E XR has a maximum discharge height of 3.33 meters.

What are the specifications of the bucket on the Case 1221 E XR wheel loader?

The Case 1221 E XR wheel loader has a bucket with a capacity of 5.6 cubic meters, a minimum bucket capacity of 5.6 cubic meters, and a bucket width of 3.45 meters.
