121F Case 121F Specifications & Technical Data (2014—2020)

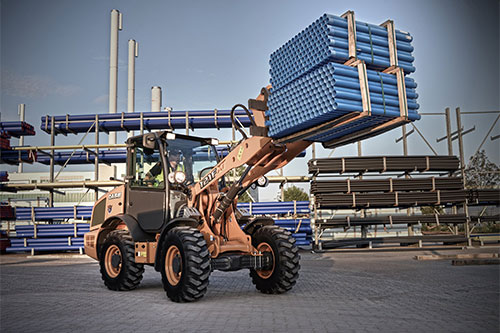

The Case 121F is a wheel loader manufactured from 2014 to 2020. It has a weight of 5.5 tons and a transport length of 5.435 meters…

The Case 121F is a wheel loader manufactured from 2014 to 2020. It has a weight of 5.5 tons and a transport length of 5.435 meters. The bucket capacity ranges from 0.8 to 1.1 cubic meters, with a bucket width of 2.05 meters. The maximum discharge height is 3.302 meters. It has a travel speed of 20 km/h and a transport width of 1.909 meters. The transport height is 2.825 meters, and the turning radius outside is 4.25 meters. Special equipment includes a quick hitch hydraulic mechanism.

121F

Years of manufacture: 2014—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 121F Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.5 t

Standard tyres: 365/80 R 20

Bucket width: 2.05 m

Bucket capacity: 0.8 m³

Bucket capacity min.: 0.8 m³

Bucket capacity max.: 1.1 m³

Steering mode: KL

Transport length: 5.435 m

Transport width: 1.909 m

Transport height: 2.825 m

Travel speed: 20 km/h

Max. discharge height: 3.302 m

Turning radius outside: 4.25 m

Lifting force: 50.5 kN

Model series: F

Engine manuf.: CNH

Engine type: F5H

Engine power: 48 kW

Displacement: 3.4 l

Revolutions at max torque: 2100 rpm

Max. torque: 261 Nm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Case 121F FAQ

When was the Case 121F wheel loader manufactured?

The Case 121F wheel loader was manufactured from 2014 to 2020.

How much does the Case 121F wheel loader weigh?

The Case 121F wheel loader weighs 5.5 tons.

What are the transport dimensions of the Case 121F wheel loader?

The Case 121F wheel loader has a transport length of 5.44 meters, a transport width of 1.91 meters, and a transport height of 2.83 meters.

What is the travel speed of the Case 121F wheel loader?

The Case 121F wheel loader has a travel speed of 20 km/h.

What are the standard tyre specifications of the Case 121F?

The Case 121F is equipped with standard tyres sized 365/80 R 20.

What are the maneuverability specifications of the Case 121F wheel loader?

The Case 121F wheel loader has an articulated-frame steering system and an outside turning radius of 4.25 meters.

What is the lifting force of the Case 121F wheel loader?

The Case 121F wheel loader has a lifting force of 50.5 kN.

What is the maximum discharge height of the Case 121F?

The Case 121F has a maximum discharge height of 3.3 meters.

What are the bucket specifications of the Case 121F wheel loader?

The Case 121F wheel loader has a bucket capacity ranging from 0.8 to 1.1 cubic meters, with a bucket width of 2.05 meters.
