1121 G Case 1121 G Specifications & Technical Data (2021—2026)

The Case 1121G is a wheel loader manufactured by Case since 2021. It has a weight of 29.46 tons and a transport length of 9.32 met…

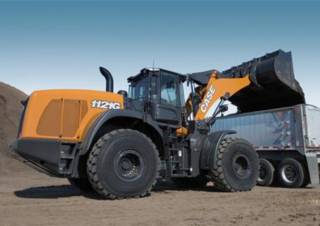

The Case 1121G is a wheel loader manufactured by Case since 2021. It has a weight of 29.46 tons and a transport length of 9.32 meters. The bucket capacity is 4.4 cubic meters, with a bucket width of 3.2 meters. The maximum discharge height is 3.12 meters. It has a travel speed of 38 km/h and a transport width of 2.98 meters. The transport height is 3.57 meters and the turning radius outside is 7.22 meters. The wheel loader is equipped with air conditioning and a diesel particulate filter.

1121 G

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 1121 G Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 29.46 t

Standard tyres: 26.5 R 25 L5

Bucket width: 3.2 m

Bucket capacity: 4.4 m³

Bucket capacity min.: 4.4 m³

Steering mode: KL

Transport length: 9.32 m

Transport width: 2.98 m

Transport height: 3.57 m

Travel speed: 38 km/h

Max. discharge height: 3.12 m

Turning radius outside: 7.22 m

Model series: G

Engine manuf.: CNH

Engine type: Cursor 9

Engine power: 259 kW

Displacement: 8.7 l

Revolutions at max torque: 1800 rpm

Max. torque: 1604 Nm

No. of cylinders: 6

Emission level: V

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Case 1121 G FAQ

When was the Case 1121 G manufactured?

The Case 1121 G was first produced in 2021.

How much does the Case 1121 G wheel loader weigh?

The Case 1121 G wheel loader weighs 29.46 tons.

What are the transport dimensions of the Case 1121 G wheel loader?

The Case 1121 G has a transport length of 9.32 meters, a transport width of 2.98 meters, and a transport height of 3.57 meters.

What is the travel speed of the Case 1121 G wheel loader?

The Case 1121 G wheel loader has a travel speed of 38 km/h.

What are the undercarriage specifications of the Case 1121 G wheel loader?

The Case 1121 G wheel loader is equipped with standard tyres sized 26.5 R 25 L5.

What are the maneuverability specifications of the Case 1121 G wheel loader?

The Case 1121 G wheel loader has an articulated-frame steering mode and an outside turning radius of 7.22 meters.

What is the maximum discharge height of the Case 1121 G wheel loader?

The Case 1121 G wheel loader has a maximum discharge height of 3.12 meters.

What are the bucket specifications of the Case 1121 G wheel loader?

The Case 1121 G wheel loader has a bucket capacity of 4.4 cubic meters and a bucket width of 3.2 meters.
