1021G Case 1021G Specifications & Technical Data (2017—2020)

The Case 1021G is a wheel loader manufactured from 2017 to 2020. It has a weight of 27.06 tons and a transport length of 9.17 mete…

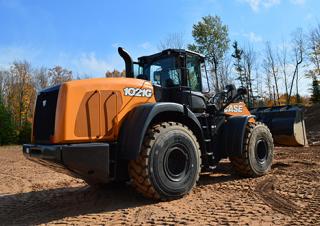

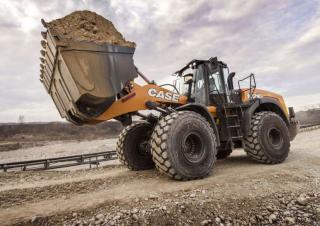

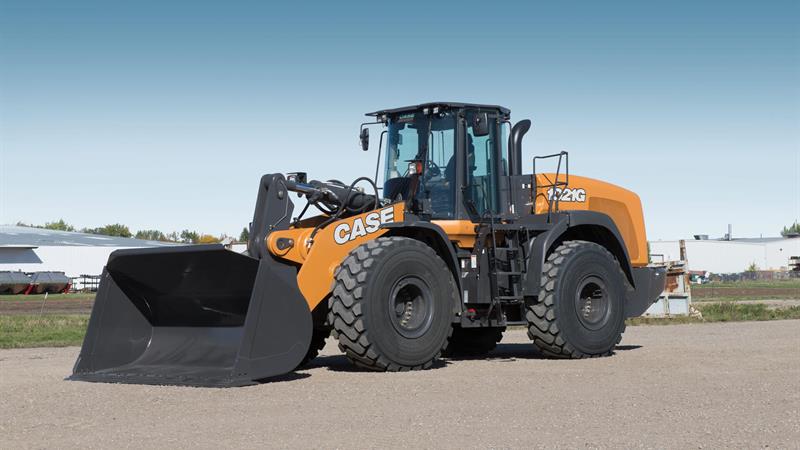

The Case 1021G is a wheel loader manufactured from 2017 to 2020. It has a weight of 27.06 tons and a transport length of 9.17 meters. The bucket capacity is 4.2 cubic meters, with a bucket width of 3.05 meters. The maximum discharge height is 2.94 meters, and it has a travel speed of 38 km/h. The transport width is 2.99 meters, and the transport height is 3.57 meters. The turning radius outside is 7.09 meters. Special equipment includes air conditioning.

1021G

Years of manufacture: 2017—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 1021G Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 27.06 t

Standard tyres: 26.5 R 25 L5

Bucket width: 3.05 m

Bucket capacity: 4.2 m³

Bucket capacity min.: 4.2 m³

Steering mode: KL

Transport length: 9.17 m

Transport width: 2.99 m

Transport height: 3.57 m

Travel speed: 38 km/h

Max. discharge height: 2.94 m

Turning radius outside: 7.09 m

Model series: G

Engine manuf.: CNH

Engine type: Cursor 9

Engine power: 239 kW

Displacement: 8.7 l

Revolutions at max torque: 1800 rpm

Max. torque: 1479 Nm

No. of cylinders: 6

Emission level: EU Stage IV and US Tier IV Final.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Case 1021G FAQ

When was the Case 1021G manufactured?

The Case 1021G was manufactured from 2017 to 2020.

How much does the Case 1021G wheel loader weigh?

The Case 1021G wheel loader weighs 27.06 tons.

What are the transport dimensions of the Case 1021G wheel loader?

The Case 1021G has a transport length of 9.17 meters, a transport width of 2.99 meters, and a transport height of 3.57 meters.

What is the travel speed of the Case 1021G wheel loader?

The Case 1021G wheel loader has a travel speed of 38 km/h.

What are the standard tyre specifications of the Case 1021G wheel loader?

The Case 1021G wheel loader is equipped with standard tyres sized 26.5 R 25 L5.

What are the maneuverability specifications of the Case 1021G wheel loader?

The Case 1021G wheel loader has an articulated-frame steering mode and an outside turning radius of 7.09 meters.

What is the maximum discharge height of the Case 1021G?

The Case 1021G has a maximum discharge height of 2.94 meters.

What are the bucket specifications of the Case 1021G wheel loader?

The Case 1021G wheel loader has a bucket capacity of 4.2 cubic meters, a minimum bucket capacity of 4.2 cubic meters, and a bucket width of 3.05 meters.
