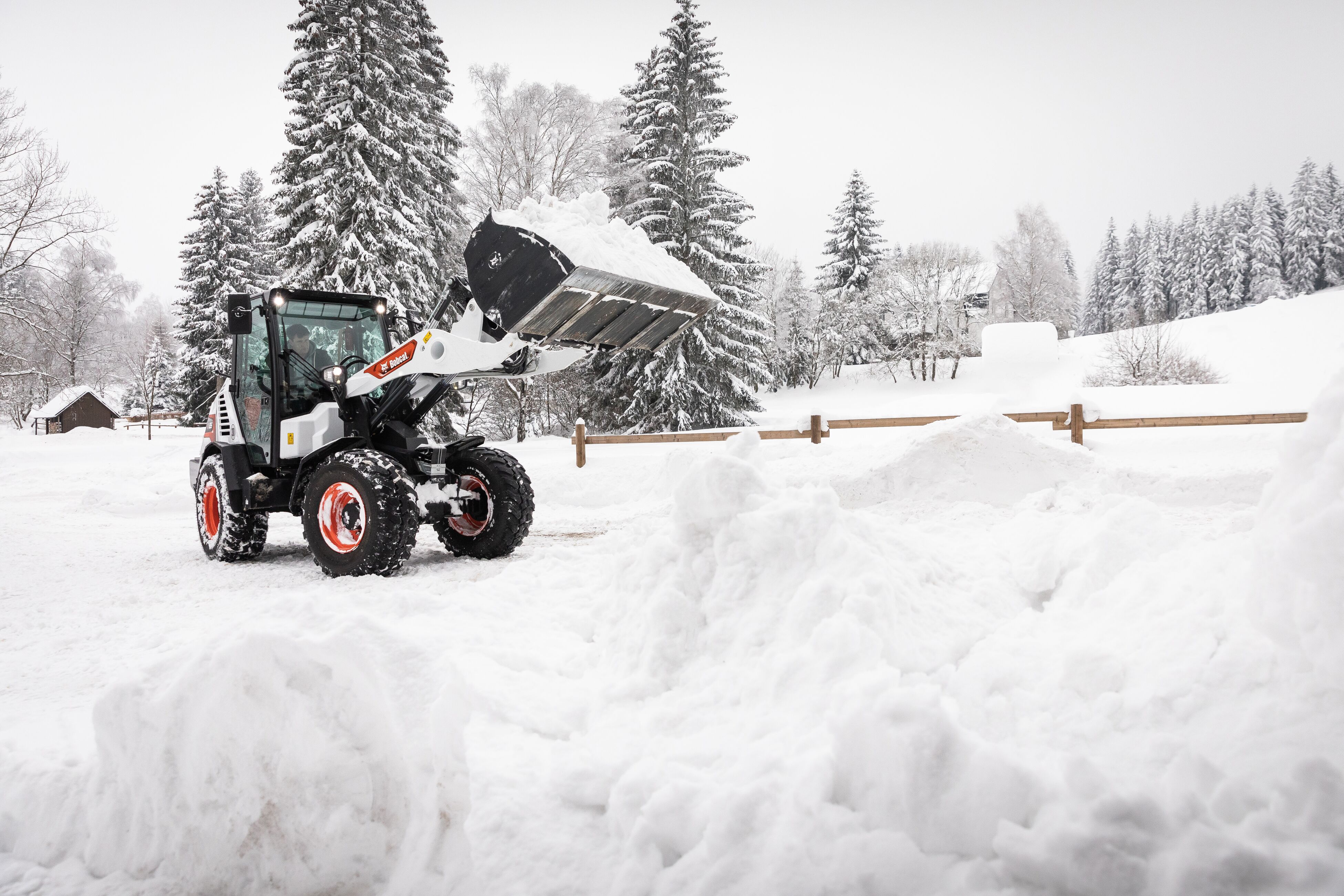

    Bobcat L85 Specifications & Technical Data (2021-2021)

    Rate this machine now!

    Weight: 5t – Standard tyres: 335/80 R18 – Bucket width: 1.9m – Bucket capacity: 0.8m³ – Bucket capacity min.: 0.6m³ – Bucket capacity max.: 1.2m³

    Technical specs - L85 Bobcat

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Weight 5 t
    • Standard tyres 335/80 R18
    • Bucket width 1.9 m
    • Bucket capacity 0.8 m³
    • Bucket capacity min. 0.6 m³
    • Bucket capacity max. 1.2 m³
    • Steering mode KL
    • Transport length 5.4 m
    • Transport width 1.9 m
    • Transport height 2.4 m
    • Travel speed 20 km/h
    • Max. discharge height 2.5 m
    • Turning radius outside 3.8 m
    • Lifting force 36.9 kN
    • Engine manuf. Bobcat
    • Engine type 2.4L
    • Engine power 50.7 kW
    • Emission level Stage V
    • Dimension lxwxh ###
    • Displacement ###
    • Revolutions at max torque ###
    • Max. torque ###
    • No. of cylinders ###
    • Cylinder bore x stroke ###

    Basic model with ROPS cabin, std. shovel and teeth

    Special equipment

    • Diesel particulate filter
    • Swing loader
    • telescopic
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.

    What Bobcat says about this machine

    • What are the key characteristics of this model?

      The powerful Bobcat engine and hydraulics ensure the high performance of the compact wheel loader, which is also characterized by excellent stability, excellent breakout, pushing and pulling forces and a large selection of Bobcat attachments.

    • What type of job is the machine best suited to do?

      The machine is ideally suited for all earthmoving and loading work in construction, landscaping, rental, commercial applications, waste management, recycling or agriculture.

    • Can you name features that differentiates this machine from others?

      One feature that sets the L85 apart from the industry is advanced implement control. This groundbreaking system allows you to switch control modes with the push of a button, so that engine speed (and maximum auxiliary hydraulics) and machine travel speed can be independently controlled. Even the most complicated attachments can be controlled intuitively and efficiently via the 7-pin connection.

    • What type of companies is this machine designed for?

      It is just as suitable for construction, landscaping, rental, commercial applications, waste management, recycling or agriculture as it is for road, snow removal and maintenance work and many other applications.

    Buy & Rent

    Compare Bobcat L85 with similar Wheel Loaders

    Press 1 image

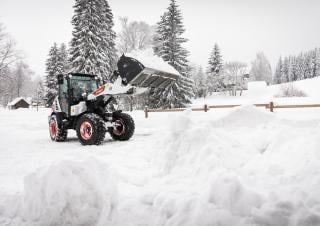

    Bobcat L85
