BEML656 Beml BEML656 Specifications & Technical Data (2019—2020)

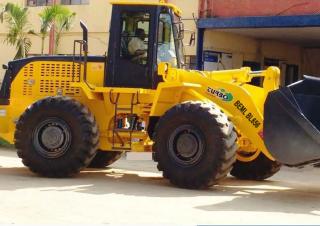

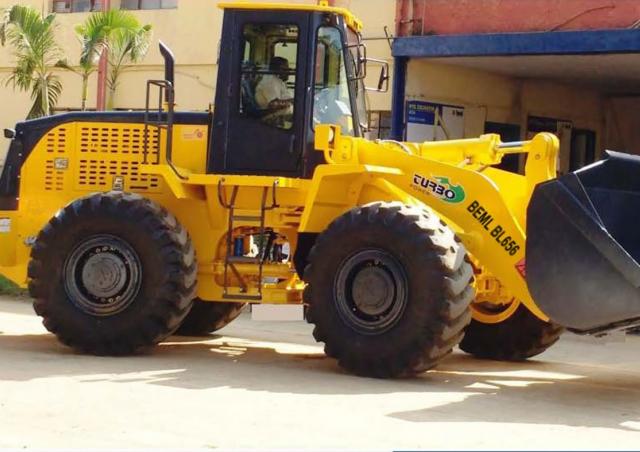

The Beml BEML656 is a wheel loader manufactured by Beml from 2019 to 2020. It has a weight of 18 tons and a transport length of 8 …

The Beml BEML656 is a wheel loader manufactured by Beml from 2019 to 2020. It has a weight of 18 tons and a transport length of 8 meters. The bucket capacity is 3.1 cubic meters with a width of 3.086 meters. The maximum discharge height is 2.782 meters. It has a travel speed of 37 km/h and a transport width of 3.086 meters. The transport height is 3.458 meters. The lifting force is 198 kN and the turning radius outside is 14.5 meters. The minimum bucket capacity is also 3.1 cubic meters.

BEML656

Years of manufacture: 2019—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - BEML656 Beml

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 18 t

Standard tyres: 23.5-25 20PR

Bucket width: 3.086 m

Bucket capacity: 3.1 m³

Bucket capacity min.: 3.1 m³

Transport length: 8 m

Transport width: 3.086 m

Transport height: 3.458 m

Travel speed: 37 km/h

Max. discharge height: 2.782 m

Turning radius outside: 14.5 m

Lifting force: 198 kN

Engine manuf.: Ashok Leyland

Engine type: H6ETI - CRS

Engine power: 179 kW

Revolutions at max torque: 1800 rpm

Max. torque: 800 Nm

No. of cylinders: 6

Cylinder bore x stroke: 104x113 mm

More technical details, like: bucket capacity max., steering mode, model series, dimension lxwxh, displacement, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

BEML656 Beml Specification for Asia Pacific (EN)

Beml BEML656 FAQ

When was the Beml BEML656 manufactured?

The Beml BEML656 was manufactured from 2019 to 2020.

How much does the Beml BEML656 wheel loader weigh?

The Beml BEML656 wheel loader weighs 18 tons.

What are the transport dimensions of the Beml BEML656 wheel loader?

The Beml BEML656 has a transport length of 8 meters, a transport width of 3.09 meters, and a transport height of 3.46 meters.

What is the travel speed of the Beml BEML656 wheel loader?

The Beml BEML656 has a travel speed of 37 km/h.

What are the undercarriage specifications of the Beml BEML656 wheel loader?

The Beml BEML656 wheel loader is equipped with standard tyres sized 23.5-25 20PR.

What is the turning radius of the Beml BEML656 wheel loader?

The Beml BEML656 has an outside turning radius of 14.5 meters.

What are the power ratings of the Beml BEML656?

The available data does not include power ratings for the Beml BEML656.

What is the maximum discharge height of the Beml BEML656?

The Beml BEML656 has a maximum discharge height of 2.78 meters.

What are the bucket specifications of the Beml BEML656 wheel loader?

The Beml BEML656 has a bucket capacity of 3.1 cubic meters, a minimum bucket capacity of 3.1 cubic meters, and a bucket width of 3.09 meters.
