L2606E Bell L2606E Specifications & Technical Data (2017—2026)

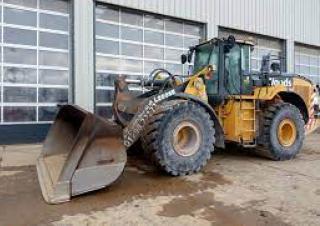

The Bell L2606E is a wheel loader manufactured by Bell since 2017. It has a weight of 24.89 tons and a transport length of 9.01 me…

The Bell L2606E is a wheel loader manufactured by Bell since 2017. It has a weight of 24.89 tons and a transport length of 9.01 meters. The bucket capacity is 4.7 cubic meters, with a width of 3.27 meters. The maximum discharge height is 3.04 meters. It has a travel speed of 39.4 km/h and a transport width of 3.06 meters. The transport height is 3.53 meters and the turning radius outside is 6.28 meters. The minimum bucket capacity is also 4.7 cubic meters.

L2606E

Years of manufacture: 2017—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - L2606E Bell

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 24.89 t

Standard tyres: 26.5R25

Bucket width: 3.27 m

Bucket capacity: 4.7 m³

Bucket capacity min.: 4.7 m³

Transport length: 9.01 m

Transport width: 3.06 m

Transport height: 3.53 m

Travel speed: 39.4 km/h

Max. discharge height: 3.04 m

Turning radius outside: 6.28 m

Model series: E

Engine manuf.: John Deere

Engine type: PowerTech PSS 6090

Engine power: 227 kW

Displacement: 9 l

Revolutions at max torque: 1500 rpm

Max. torque: 1456 Nm

No. of cylinders: 6

Emission level: EPA Final Tier 4

More technical details, like: bucket capacity max., steering mode, lifting force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Bell L2606E FAQ

When was the Bell L2606E manufactured?

The Bell L2606E was first produced in 2017.

How much does the Bell L2606E wheel loader weigh?

The Bell L2606E wheel loader weighs 24.89 tons.

What are the transport dimensions of the Bell L2606E wheel loader?

The Bell L2606E has a transport length of 9.01 meters, a transport width of 3.06 meters, and a transport height of 3.53 meters.

What is the travel speed of the Bell L2606E wheel loader?

The Bell L2606E wheel loader has a travel speed of 39.4 km/h.

What are the undercarriage tyre specifications of the Bell L2606E wheel loader?

The Bell L2606E wheel loader is equipped with standard tyres sized 26.5R25.

What is the turning radius of the Bell L2606E wheel loader?

The Bell L2606E has an outside turning radius of 6.28 meters.

What is the maximum discharge height of the Bell L2606E wheel loader?

The Bell L2606E wheel loader has a maximum discharge height of 3.04 meters.

What are the bucket specifications of the Bell L2606E wheel loader?

The Bell L2606E wheel loader has a bucket capacity of 4.7 cubic meters, a minimum bucket capacity of 4.7 cubic meters, and a bucket width of 3.27 meters.
