L1204C Bell L1204C Specifications & Technical Data (1999—2005)

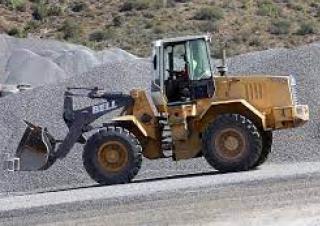

The Bell L1204C is a wheel loader manufactured by Bell from 1999 to 2005. It has a weight of 10 tons and a transport length of 6.6…

The Bell L1204C is a wheel loader manufactured by Bell from 1999 to 2005. It has a weight of 10 tons and a transport length of 6.692 meters. The bucket width is 2 meters, and it has a maximum discharge height of 4.897 meters. The travel speed of this machine is 42 km/h. The transport width is 2.025 meters, and the transport height is 3.198 meters. The bucket capacity ranges from a minimum of 1 cubic meter to a maximum of 3 cubic meters.

Wheel Loaders Bell L1204C

Technical specs - L1204C Bell

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10 t
Bucket width
2 m
Bucket capacity min.
1 m³
Bucket capacity max.
3 m³
Transport length
6.692 m
Transport width
2.025 m
Transport height
3.198 m
Travel speed
42 km/h
Max. discharge height
4.897 m
Engine manuf.
N/A
Engine type
N/A
Engine power
82 kW

More technical details, like: standard tyres, bucket capacity, steering mode, turning radius outside, lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Bell L1204C FAQ

When was the Bell L1204C manufactured?

The Bell L1204C was manufactured from 1999 to 2005.

How much does the Bell L1204C wheel loader weigh?

The Bell L1204C wheel loader weighs 10 tons.

What are the transport dimensions of the Bell L1204C wheel loader?

The Bell L1204C has a transport length of 6.69 meters, a transport width of 2.03 meters, and a transport height of 3.2 meters.

What is the travel speed of the Bell L1204C wheel loader?

The Bell L1204C has a travel speed of 42 km/h.

What is the material handling capacity of the Bell L1204C in terms of discharge height?

The Bell L1204C has a maximum discharge height of 4.9 meters.

What are the bucket specifications of the Bell L1204C wheel loader?

The Bell L1204C wheel loader has a bucket with a maximum capacity of 3 cubic meters, a minimum capacity of 1 cubic meter, and a width of 2 meters.
