40483-026 Belaz 40483-026 Specifications & Technical Data (2020—2026)

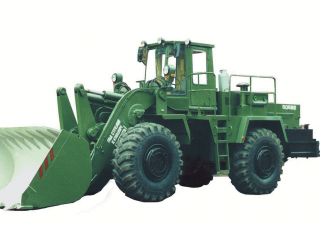

The Belaz 40483-026 is a wheel loader manufactured by Belaz since 2020. It has a weight of 29.5 tons and a transport length of 9.8…

The Belaz 40483-026 is a wheel loader manufactured by Belaz since 2020. It has a weight of 29.5 tons and a transport length of 9.82 meters. The bucket capacity ranges from 4.4 to 6.5 cubic meters. It can reach a maximum discharge height of 6.18 meters and has a travel speed of 40 km/h. The transport width is 3.3 meters and the transport height is 3.75 meters. It has a turning radius outside of 8 meters.

40483-026

Years of manufacture: 2020—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 40483-026 Belaz

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 29.5 t

Standard tyres: 26.5-25

Bucket capacity: 6.5 m³

Bucket capacity min.: 4.4 m³

Bucket capacity max.: 6.5 m³

Steering mode: VL

Transport length: 9.82 m

Transport width: 3.3 m

Transport height: 3.75 m

Travel speed: 40 km/h

Max. discharge height: 6.18 m

Turning radius outside: 8 m

Model series: 40482-026

Engine manuf.: Yamz

Engine type: 7512.1

Engine power: 264 kW

Displacement: 14.86 l

Revolutions at max torque: 1300 rpm

Max. torque: 1570 Nm

No. of cylinders: 8

Cylinder bore x stroke: 132x140 mm

More technical details, like: bucket width, lifting force, dimension lxwxh, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

40483-026 Belaz Specification for Europe (RU)

Belaz 40483-026 FAQ

When was the Belaz 40483-026 manufactured?

The Belaz 40483-026 was first produced in 2020.

How much does the Belaz 40483-026 wheel loader weigh?

The Belaz 40483-026 wheel loader weighs 29.5 tons.

What are the transport dimensions of the Belaz 40483-026 wheel loader?

The Belaz 40483-026 has a transport length of 9.82 meters, a transport width of 3.3 meters, and a transport height of 3.75 meters.

What is the travel speed of the Belaz 40483-026 wheel loader?

The Belaz 40483-026 wheel loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Belaz 40483-026 wheel loader?

The Belaz 40483-026 wheel loader is equipped with standard tyres sized 26.5-25.

What are the maneuverability specifications of the Belaz 40483-026 wheel loader?

The Belaz 40483-026 has a front steering mode and an outside turning radius of 8 meters.

What is the maximum discharge height of the Belaz 40483-026?

The Belaz 40483-026 has a maximum discharge height of 6.18 meters.

What are the bucket capacity specifications of the Belaz 40483-026 wheel loader?

The Belaz 40483-026 wheel loader has a bucket capacity of 6.5 cubic meters, with a maximum capacity of 6.5 cubic meters and a minimum capacity of 4.4 cubic meters.
