    Technical specs - AR 35 Atlas

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Weight 2.15 t
    Standard tyres 10.0/75-15.3 MPT
    Bucket width 1.35 m
    Bucket capacity 0.34 m³
    Bucket capacity min. 0.34 m³
    Steering mode KL
    Transport length 4.24 m
    Transport width 1.35 m
    Transport height 2.27 m
    Travel speed 20 km/h
    Max. discharge height 2.3 m
    Turning radius outside 2.87 m
    Lifting force 21 kN
    Engine manuf. Perkins
    Engine type 403D-15
    Engine power 25 kW
    Displacement 1.496 l
    Revolutions at max torque 2800 rpm
    Emission level III A
    Bucket capacity max. ###
    Engine power ###
    Dimension lxwxh ###
    Max. torque ###
    No. of cylinders ###
    Cylinder bore x stroke ###
    Weight ###

    Basic model with ROPS cabin, std. shovel and teeth

    AR 35 Atlas - Special equipment

    • Diesel particulate filter
    • Pivoting loader
    • telescopic
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.

    Download data sheets - Atlas AR 35

    X

    What do you think about this machine?


    Sell your Atlas AR 35 fast and easy

    Receive the best purchase offer² within 48 hours¹ from the network of WeBuyHeavyMachines.com with over 1,000 international dealers.

    Compare Atlas AR 35 with other models

    Press 1 image

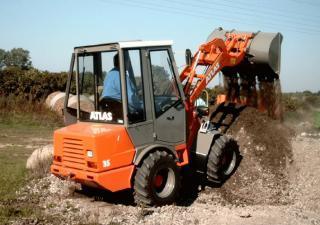

    Atlas AR 35
