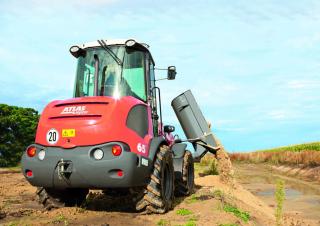

AR 65 e Atlas-weycor AR 65 e Specifications & Technical Data (2013—2015)
.jpg)
.jpg)
Visit Atlas-weycor live at
Technical specs - AR 65 e Atlas-weycor
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 5.15 t
- Standard tyres
- 12.5-20 MPT
- Bucket width
- 2.05 m
- Bucket capacity
- 1 m³
- Bucket capacity min.
- 1 m³
- Steering mode
- KL
- Transport length
- 5.22 m
- Transport width
- 1.87 m
- Transport height
- 2.65 m
- Travel speed
- 20 km/h
- Max. discharge height
- 2.47 m
- Turning radius outside
- 3.75 m
- Lifting force
- 45.9 kN
- Model series
- AR
- Engine manuf.
- Deutz
- Engine type
- TD2.9 L4
- Engine power
- 54 kW
- Displacement
- 2.9 l
- Emission level
- T4
More technical details, like: bucket capacity max., dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin, std. shovel and teeth
Special equipment
- Diesel particulate filter
-
No
- Swing loader
-
No
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
Yes
