AX 850 Ahlmann AX 850 Specifications & Technical Data (2010—2012)

Model rating: 5,00 / 10

The Ahlmann AX 850 is a wheel loader manufactured from 2010 to 2012. It has a weight of 5.2 tons and a transport length of 5.3 met…

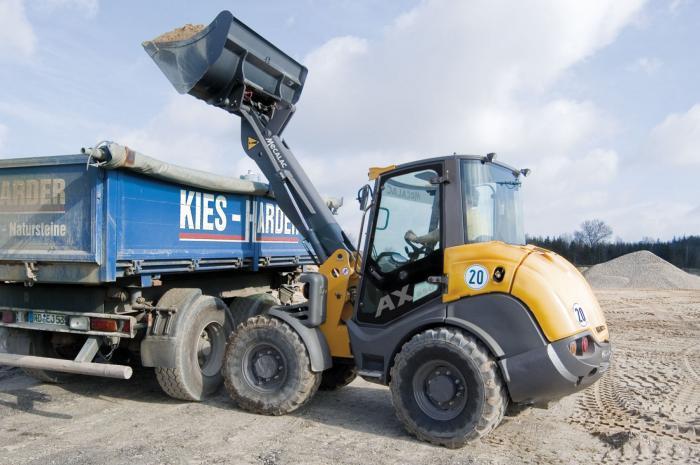

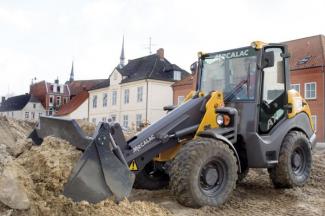

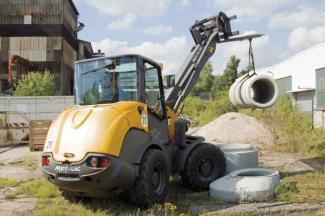

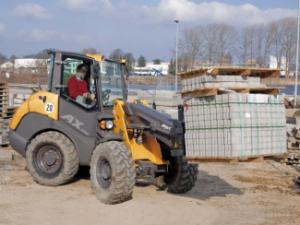

The Ahlmann AX 850 is a wheel loader manufactured from 2010 to 2012. It has a weight of 5.2 tons and a transport length of 5.3 meters. The bucket capacity is 0.85 cubic meters, and the maximum discharge height is 2.86 meters. It has a travel speed of 30 km/h and a transport width of 1.85 meters. The transport height is 2.47 meters, and it has a lifting force of 43 kN. The special equipment includes a quick hitch hydraulic mechanism.

AX 850

Years of manufacture: 2010—2012

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AX 850 Ahlmann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.2 t

Standard tyres: 12.5-18

Bucket capacity: 0.85 m³

Bucket capacity min.: 0.85 m³

Steering mode: KL

Transport length: 5.3 m

Transport width: 1.85 m

Transport height: 2.47 m

Travel speed: 30 km/h

Max. discharge height: 2.86 m

Lifting force: 43 kN

Model series: AX

Engine manuf.: John Deere

Engine type: 4024HF295

Engine power: 46 kW

Revolutions at max torque: 2000 rpm

More technical details, like: bucket width, bucket capacity max., turning radius outside, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Ahlmann AX 850 FAQ

When was the Ahlmann AX 850 manufactured?

The Ahlmann AX 850 was manufactured from 2010 to 2012.

How much does the Ahlmann AX 850 wheel loader weigh?

The Ahlmann AX 850 wheel loader weighs 5.2 tons.

What are the transport dimensions of the Ahlmann AX 850 wheel loader?

The Ahlmann AX 850 has a transport length of 5.3 meters, a transport width of 1.85 meters, and a transport height of 2.47 meters.

What is the travel speed of the Ahlmann AX 850 wheel loader?

The Ahlmann AX 850 has a travel speed of 30 km/h.

What are the undercarriage specifications of the Ahlmann AX 850 wheel loader?

The Ahlmann AX 850 wheel loader is equipped with standard tyres sized 12.5-18.

What is the steering mode of the Ahlmann AX 850?

The Ahlmann AX 850 has articulated-frame steering.

What is the lifting force of the Ahlmann AX 850 wheel loader?

The Ahlmann AX 850 wheel loader has a lifting force of 43 kN.

What is the maximum discharge height of the Ahlmann AX 850?

The Ahlmann AX 850 has a maximum discharge height of 2.86 meters.

What is the bucket capacity of the Ahlmann AX 850 wheel loader?

The Ahlmann AX 850 wheel loader has a bucket capacity of 0.85 cubic meters.
