AS 70 Ahlmann AS 70 Specifications & Technical Data (2001—2004)

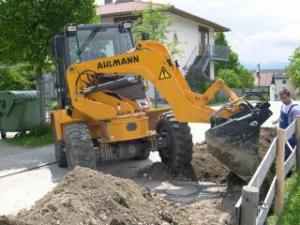

The Ahlmann AS 70 is a wheel loader manufactured by Ahlmann from 2001 to 2004. It has a weight of 5.7 tons and a transport length …

The Ahlmann AS 70 is a wheel loader manufactured by Ahlmann from 2001 to 2004. It has a weight of 5.7 tons and a transport length of 5.66 meters. The bucket capacity is 0.7 cubic meters, with a maximum capacity of 1.2 cubic meters and a minimum capacity of 0.7 cubic meters. The travel speed of this wheel loader is 35 km/h. It has a transport width of 1.95 meters and a transport height of 2.72 meters. The AS 70 is equipped with a swing loader and telescopic capabilities.

AS 70

Years of manufacture: 2001—2004

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AS 70 Ahlmann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.7 t

Standard tyres: 365/70 R18

Bucket capacity: 0.7 m³

Bucket capacity min.: 0.7 m³

Bucket capacity max.: 1.2 m³

Steering mode: AL

Transport length: 5.66 m

Transport width: 1.95 m

Transport height: 2.72 m

Travel speed: 35 km/h

Model series: AS

Engine manuf.: Deutz

Engine type: BF4L1011FT

Engine power: 44 kW

Displacement: 2.732 l

Revolutions at max torque: 2300 rpm

More technical details, like: bucket width, max. discharge height, turning radius outside, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: Yes
telescopic: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

AS 70 Ahlmann Specification for North America (EN)

Ahlmann AS 70 FAQ

When was the Ahlmann AS 70 manufactured?

The Ahlmann AS 70 was manufactured from 2001 to 2004.

How much does the Ahlmann AS 70 wheel loader weigh?

The Ahlmann AS 70 wheel loader weighs 5.7 tons.

What are the transport dimensions of the Ahlmann AS 70 wheel loader?

The Ahlmann AS 70 has a transport length of 5.66 meters, a transport width of 1.95 meters, and a transport height of 2.72 meters.

What is the travel speed of the Ahlmann AS 70 wheel loader?

The Ahlmann AS 70 has a travel speed of 35 km/h.

What are the undercarriage specifications of the Ahlmann AS 70 wheel loader?

The Ahlmann AS 70 wheel loader is equipped with standard tyres sized 365/70 R18.

What is the steering mode of the Ahlmann AS 70?

The Ahlmann AS 70 has all-wheel steering.

What are the bucket capacity specifications of the Ahlmann AS 70 wheel loader?

The Ahlmann AS 70 wheel loader has a bucket capacity ranging from 0.7 cubic meters to a maximum of 1.2 cubic meters.

How much is a Ahlmann AS 70 Wheel loader (2001u20132004) worth?

The residual value of the Ahlmann AS 70 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
