AS 50 Ahlmann AS 50 Specifications & Technical Data (2001—2010)

The Ahlmann AS 50 is a wheel loader manufactured by Ahlmann from 2001 to 2010. It has a weight of 4.1 tons and a transport length …

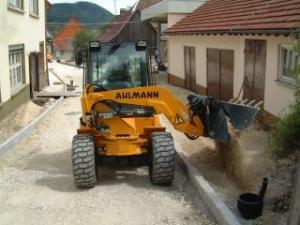

The Ahlmann AS 50 is a wheel loader manufactured by Ahlmann from 2001 to 2010. It has a weight of 4.1 tons and a transport length of 4.865 meters. The bucket capacity is 0.5 cubic meters, with a maximum discharge height of 2.5 meters. The travel speed of the AS 50 is 30 km/h. It has a transport width of 1.62 meters and a transport height of 2.55 meters. The lifting force of this wheel loader is 35 kN. It is equipped with special features such as a quick hitch hydr. and a swing loader.

AS 50

Years of manufacture: 2001—2010

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AS 50 Ahlmann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.1 t

Standard tyres: 12.5-18

Bucket capacity: 0.5 m³

Bucket capacity min.: 0.5 m³

Steering mode: AL

Transport length: 4.865 m

Transport width: 1.62 m

Transport height: 2.55 m

Travel speed: 30 km/h

Max. discharge height: 2.5 m

Lifting force: 35 kN

Model series: AS

Engine manuf.: Deutz

Engine type: F3L1011F

Engine power: 29 kW

More technical details, like: bucket width, bucket capacity max., turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: Yes
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Ahlmann AS 50 FAQ

When was the Ahlmann AS 50 manufactured?

The Ahlmann AS 50 was manufactured from 2001 to 2010.

How much does the Ahlmann AS 50 wheel loader weigh?

The Ahlmann AS 50 wheel loader weighs 4.1 tons.

What are the transport dimensions of the Ahlmann AS 50 wheel loader?

The Ahlmann AS 50 has a transport length of 4.87 meters, a transport width of 1.62 meters, and a transport height of 2.55 meters.

What is the travel speed of the Ahlmann AS 50 wheel loader?

The Ahlmann AS 50 wheel loader has a travel speed of 30 km/h.

What are the standard tyre specifications for the Ahlmann AS 50's undercarriage?

The Ahlmann AS 50 is equipped with standard tyres sized 12.5-18 on its undercarriage.

What is the steering mode of the Ahlmann AS 50?

The Ahlmann AS 50 has all-wheel steering.

What is the lifting force of the Ahlmann AS 50 wheel loader?

The Ahlmann AS 50 wheel loader has a lifting force of 35 kN.

What is the maximum discharge height of the Ahlmann AS 50?

The Ahlmann AS 50 has a maximum discharge height of 2.5 meters.

What is the bucket capacity of the Ahlmann AS 50 wheel loader?

The Ahlmann AS 50 wheel loader has a bucket capacity of 0.5 cubic meters.
