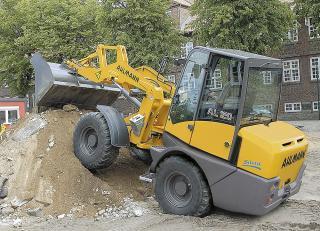

Ahlmann AL 120 Wheel Loader Specs & Dimensions (2004 - 2008)

Technical specs - AL 120 Ahlmann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.75 t

Standard tyres: 16/70-20

Bucket capacity: 1.2 m³

Bucket capacity min.: 1.2 m³

Steering mode: KL

Travel speed: 30 km/h

Model series: AL

Engine manuf.: Deutz

Engine type: BF4L2011

Engine power: 53.5 kW

More technical details, like: bucket width, bucket capacity max., transport length, transport width, transport height, max. discharge height, turning radius outside, lifting force, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: bucket width, bucket capacity max., transport length, transport width, transport height, max. discharge height, turning radius outside, lifting force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Ahlmann AL 120 FAQ

When was the Ahlmann AL 120 manufactured?

The Ahlmann AL 120 was manufactured from 2004 to 2008.

How much does the Ahlmann AL 120 weigh?

The Ahlmann AL 120 weighs 5.75 tons.

What is the travel speed of the Ahlmann AL 120 wheel loader?

The Ahlmann AL 120 has a travel speed of 30 km/h.

What are the undercarriage tyre specifications of the Ahlmann AL 120 wheel loader?

The Ahlmann AL 120 wheel loader is equipped with standard tyres sized 16/70-20.

What is the steering mode of the Ahlmann AL 120 wheel loader?

The Ahlmann AL 120 wheel loader uses articulated-frame steering.

What is the bucket capacity of the Ahlmann AL 120 wheel loader?

The bucket capacity of the Ahlmann AL 120 wheel loader is 1.2 cubic meters.

How much is a Ahlmann AL 120 Wheel loader (2004u20132008) worth?

The residual value of the Ahlmann AL 120 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
