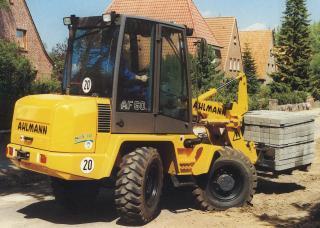

AF 60 e Ahlmann AF 60 e Specifications & Technical Data (2001—2011)
-
Model rating
- 9,00 / 10
Technical specs - AF 60 e Ahlmann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4 t
- Standard tyres
- 12.5-18 MPTO 04
- Bucket capacity
- 0.6 m³
- Bucket capacity min.
- 0.6 m³
- Bucket capacity max.
- 0.8 m³
- Steering mode
- AL
- Transport length
- 4.75 m
- Transport width
- 1.58 m
- Transport height
- 3.96 m
- Travel speed
- 20 km/h
- Max. discharge height
- 3.12 m
- Lifting force
- 24 kN
- Model series
- AF
- Engine manuf.
- Deutz
- Engine type
- F3L1011F
- Engine power
- 29.5 kW
- Revolutions at max torque
- 1900 rpm
More technical details, like: bucket width, turning radius outside, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin, std. shovel and teeth
Special equipment
- Diesel particulate filter
-
No
- Swing loader
-
No
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
No
Download datasheets (PDF)
Ahlmann AF 60 e FAQ
How much does the Ahlmann AF 60 e wheel loader weigh?
What are the transport dimensions of the Ahlmann AF 60 e wheel loader?
What is the travel speed of the Ahlmann AF 60 e wheel loader?
What are the undercarriage specifications of the Ahlmann AF 60 e wheel loader?
What is the steering mode of the Ahlmann AF 60 e?
What is the lifting force of the Ahlmann AF 60 e wheel loader, given that no power rating data is available?
What is the maximum discharge height of the Ahlmann AF 60 e?
What are the bucket capacity specifications of the Ahlmann AF 60 e wheel loader?
How much is a Ahlmann AF 60 e Wheel loader (2001u20132011) worth?
