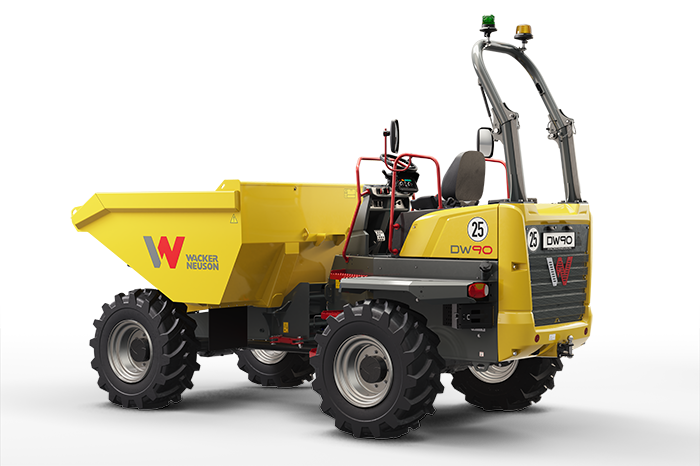

DW90-3 Wacker Neuson DW90-3 Specifications & Technical Data (2023—2026)
Visit Wacker Neuson live at
Technical specs - DW90-3 Wacker Neuson
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4.395 t
- Standard tyres
- 500/60-22.5
- Net load
- 9 t
- Dump capacity
- 3.6 m³
- Dumper type
- V
- Transport length
- 4.67 m
- Transport width
- 2.486 m
- Transport height
- 3.235 m
- Travel speed
- 25 km/h
- Model series
- DW
- Engine manuf.
- Deutz
- Engine type
- TD 2.9
- Engine power
- 55.4 kW
- Displacement
- 2.925 l
- Max. torque
- 300/1600 Nm
- No. of cylinders
- 4
- Emission level
- V
More technical details, like: loading height, turning radius outside, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Heated dump body
-
No
- All-wheel drive
-
Yes
- Track
-
No
- Aircondition
-
No
Wacker Neuson DW90-3 FAQ
What is the weight of the Wacker Neuson DW90-3 wheel dumper?
What are the transport dimensions of the Wacker Neuson DW90-3?
What is the travel speed of the Wacker Neuson DW90-3?
What are the undercarriage specifications of the Wacker Neuson DW90-3?
What is the material handling capacity of the Wacker Neuson DW90-3 wheel dumper?
How much is a Wacker Neuson DW90-3 Wheel dumper (2023u20132025) worth?
Events
Visit Wacker Neuson live at
Machine inspection
Ask for inspection of your Wacker Neuson DW90-3 from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Wacker Neuson DW90-3 with similar Wheel Dumpers

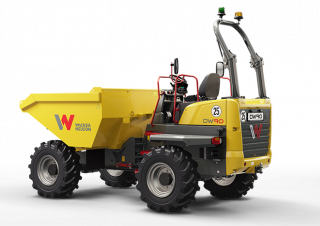

Wacker Neuson DW90-3
