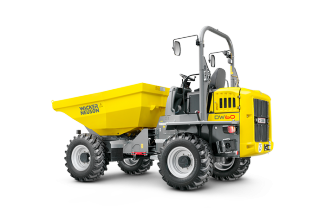

Wacker Neuson DW60 Specifications & Technical Data (2014-2019)

Technical specs - DW60 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.55 t

Standard tyres: 400/55R22.5

Net load: 6 t

Dump capacity: 2.65 m³

Dumper type: V

Transport length: 5 m

Transport width: 2.33 m

Transport height: 3.11 m

Travel speed: 25 km/h

Model series: DW

Engine manuf.: Perkins

Engine type: 854F

Engine power: 55.4 kW

Displacement: 3.4 l

Revolutions at max torque: 2200 rpm

No. of cylinders: 4

Emission level: IIIB

More technical details, like: loading height, turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke, model type, driveline, rops, fops, engine manufacturer, engine model, rated speed...

More technical details, like: loading height, turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke, model type, driveline, rops, fops, engine manufacturer, engine model, rated speed, engine output, fuel, drive, tyre size - front, tyre size - rear, service type, height over rops, width, overall length, wheelbase, ground clearance, width - front tyres, width - rear tyres, width - skip, height over skip - untipped, turning radius - outside, chassis articulation, payload - heaped, payload - struck, payload - water, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: Yes
Heated dump body: No
All-wheel drive: Yes
Track: No
Aircondition: No

Download datasheets (PDF)

Wacker Neuson DW60 FAQ

When was the Wacker Neuson DW60 manufactured?

The Wacker Neuson DW60 was manufactured from 2014 to 2019.

What is the weight of the Wacker Neuson DW60 wheel dumper?

The Wacker Neuson DW60 wheel dumper weighs 4.55 tons.

What are the transport dimensions of the Wacker Neuson DW60?

The Wacker Neuson DW60 has a transport length of 5 meters, a transport width of 2.33 meters, and a transport height of 3.11 meters.

What is the travel speed of the Wacker Neuson DW60 wheel dumper?

The Wacker Neuson DW60 has a travel speed of 25 km/h.

What are the undercarriage specifications of the Wacker Neuson DW60?

The Wacker Neuson DW60 is equipped with standard tyres sized 400/55R22.5.

What is the material handling capacity of the Wacker Neuson DW60 wheel dumper?

The Wacker Neuson DW60 has a net load capacity of 6 tons, a dump capacity of 2.65 cubic meters, and features a front-end tipper dumper type.

How much is a Wacker Neuson DW60 Wheel dumper (2014u20132019) worth?

The residual value of the Wacker Neuson DW60 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
