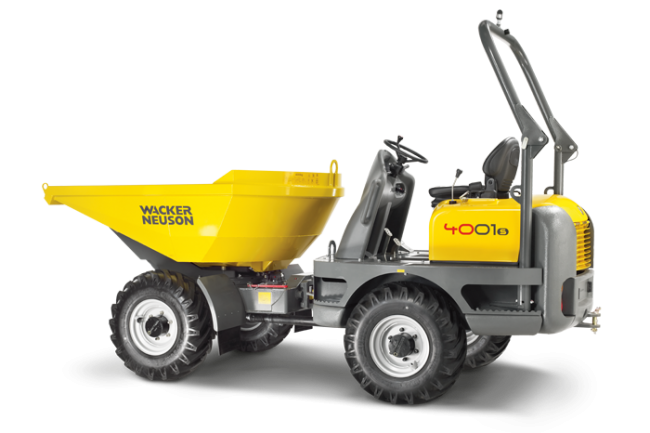

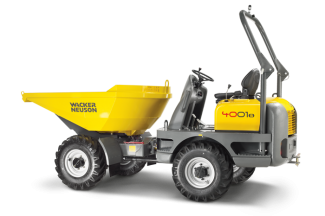

Wacker Neuson 4001 Specifications & Technical Data (2008-2021)

Technical specs - 4001 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.73 t

Standard tyres: 11.50/80x15.3

Net load: 4 t

Dump capacity: 1.65 m³

Dumper type: R

Transport length: 4 m

Transport width: 1.77 m

Transport height: 2.7 m

Travel speed: 21 km/h

Engine manuf.: Yanmar

Engine type: 4TNV88T

Engine power: 34.1 kW

Displacement: 2.189 l

Revolutions at max torque: 2800 rpm

No. of cylinders: 3

Emission level: III A

More technical details, like: loading height, turning radius outside, model series, dimension lxwxh, max. torque, cylinder bore x stroke, model type, driveline, rops, engine manufacturer, engine model, rated speed...

More technical details, like: loading height, turning radius outside, model series, dimension lxwxh, max. torque, cylinder bore x stroke, model type, driveline, rops, engine manufacturer, engine model, rated speed, engine output, fuel, drive, std tyre size front, tyre size - front, tyre size - rear, service type, height over rops, width, overall length, wheelbase, ground clearance, width - front tyres, width - rear tyres, width - skip, height over skip - untipped, turning radius - outside, chassis articulation, payload - heaped, payload - struck, payload - water, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Buy full specs

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: Yes
Track: No
Aircondition: No

Download datasheets (PDF)

Wacker Neuson 4001 FAQ

When was the Wacker Neuson 4001 manufactured?

The Wacker Neuson 4001 was manufactured from 2008 to 2021.

How much does the Wacker Neuson 4001 weigh?

The Wacker Neuson 4001 weighs 2.73 tons.

What are the transport dimensions of the Wacker Neuson 4001 wheel dumper?

The Wacker Neuson 4001 has a transport length of 4 meters, a transport width of 1.77 meters, and a transport height of 2.7 meters.

What is the travel speed of the Wacker Neuson 4001 wheel dumper?

The Wacker Neuson 4001 wheel dumper has a travel speed of 21 km/h.

What are the standard tyres of the Wacker Neuson 4001 wheel dumper?

The Wacker Neuson 4001 wheel dumper is equipped with standard tyres sized 11.50/80x15.3.

What is the material handling capacity of the Wacker Neuson 4001 wheel dumper?

The Wacker Neuson 4001 wheel dumper has a net load capacity of 4 tons and a dump capacity of 1.65 cubic meters.

How much is a Wacker Neuson 4001 Wheel dumper (2008u20132021) worth?

The residual value of the Wacker Neuson 4001 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
