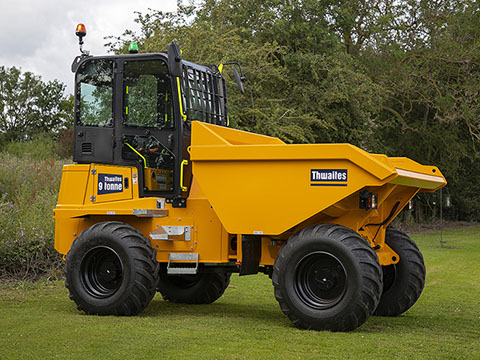

MACH2394 Thwaites MACH2394 Specifications & Technical Data (2021—2026)

Weight: 5.39t – Net load: 9t – Dump capacity: 4.6m³ – Dumper type: V – Transport length: 4.67m – Transport width: 2.485m

Wheel Dumpers Thwaites MACH2394

Technical specs - MACH2394 Thwaites

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.39 t
Net load
9 t
Dump capacity
4.6 m³
Dumper type
V
Transport length
4.67 m
Transport width
2.485 m
Transport height
3.285 m
Travel speed
24.3 km/h
Loading height
1.975 m
Turning radius outside
17.6 m
Model series
9 Tonne Range
Engine manuf.
Deutz
Engine type
TCD 3.6 L4
Engine power
55.4 kW
Displacement
3.6 l
Max. torque
405 Nm
No. of cylinders
4

More technical details, like: standard tyres, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
Yes
Heated dump body
No
All-wheel drive
No
Track
No
Aircondition
Yes

Download datasheets (PDF)

Thwaites MACH2394 FAQ

When was the Thwaites MACH2394 manufactured?

The Thwaites MACH2394 was first produced in 2021.

How much does the Thwaites MACH2394 wheel dumper weigh?

The Thwaites MACH2394 wheel dumper weighs 5.39 tons.

What are the transport dimensions of the Thwaites MACH2394 wheel dumper?

The Thwaites MACH2394 has a transport length of 4.67 meters, a transport width of 2.485 meters, and a transport height of 3.285 meters.

What is the travel speed of the Thwaites MACH2394 wheel dumper?

The Thwaites MACH2394 has a travel speed of 24.3 km/h.

What is the turning radius of the Thwaites MACH2394 wheel dumper?

The Thwaites MACH2394 has an outside turning radius of 17.6 meters.

What is the material handling capacity of the Thwaites MACH2394 wheel dumper?

The Thwaites MACH2394 has a net load capacity of 9 tons and a dump capacity of 4.6 cubic meters.
