MACH2262 Thwaites MACH2262 Specifications & Technical Data (2023—2026)

Weight: 4.22t – Net load: 6t – Dump capacity: 3.15m³ – Dumper type: R – Transport length: 5.082m – Transport width: 2.28m

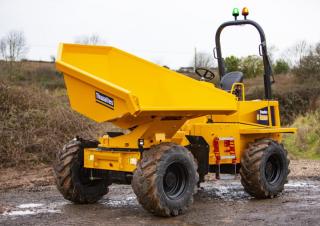

Wheel Dumpers Thwaites MACH2262

Technical specs - MACH2262 Thwaites

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.22 t
Net load
6 t
Dump capacity
3.15 m³
Dumper type
R
Transport length
5.082 m
Transport width
2.28 m
Transport height
2.32 m
Travel speed
25 km/h
Loading height
1.67 m
Turning radius outside
12 m
Model series
6 Tonne Range
Engine manuf.
Yanmar
Engine type
4TNV98CT
Engine power
53.7 kW
Max. torque
295 Nm
No. of cylinders
4

More technical details, like: standard tyres, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
Yes
Heated dump body
No
All-wheel drive
No
Track
No
Aircondition
No

Download datasheets (PDF)

Thwaites MACH2262 FAQ

When was the Thwaites MACH2262 manufactured?

The Thwaites MACH2262 was first produced in 2023.

How much does the Thwaites MACH2262 wheel dumper weigh?

The Thwaites MACH2262 wheel dumper weighs 4.22 tons.

What are the transport dimensions of the Thwaites MACH2262 wheel dumper?

The Thwaites MACH2262 has a transport length of 5.082 meters, a transport width of 2.28 meters, and a transport height of 2.32 meters.

What is the travel speed of the Thwaites MACH2262 wheel dumper?

The Thwaites MACH2262 has a travel speed of 25 km/h.

What is the outside turning radius of the Thwaites MACH2262 wheel dumper?

The Thwaites MACH2262 has an outside turning radius of 12 meters.

What is the material handling capacity of the Thwaites MACH2262 wheel dumper?

The Thwaites MACH2262 wheel dumper has a net load capacity of 6 tons and a dump capacity of 3.15 cubic meters.

How much is a Thwaites MACH2262 Wheel dumper (2023u20132025) worth?

The residual value of the Thwaites MACH2262 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
