MACH2077 Thwaites MACH2077 Specifications & Technical Data (2022—2026)

Weight: 2.15t – Net load: 2.3t – Dump capacity: 1.205m³ – Dumper type: R – Transport length: 3.891m – Transport width: 1.488m

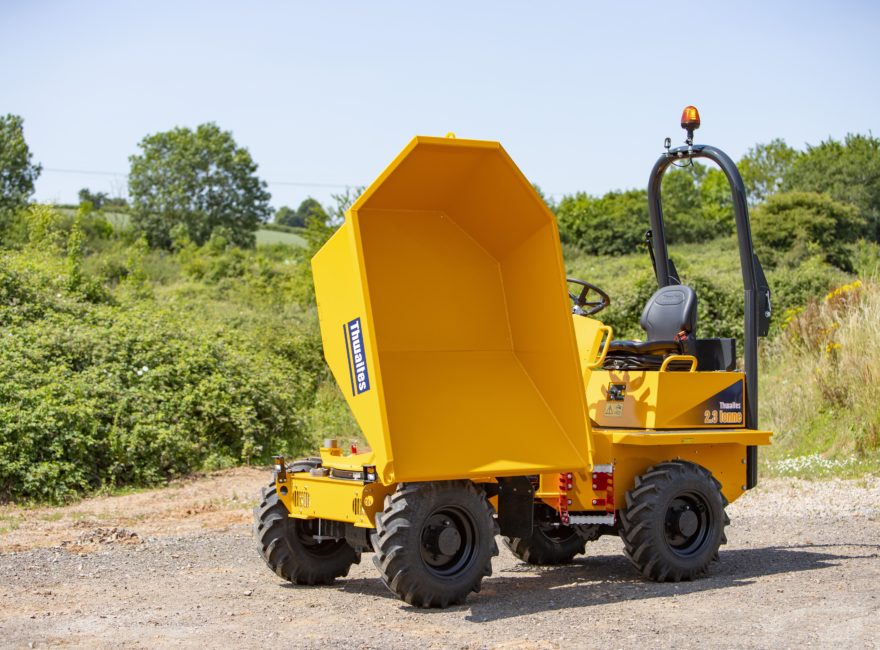

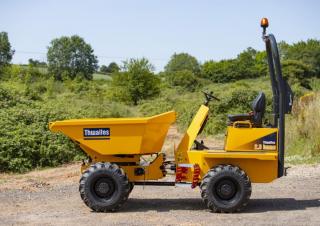

Wheel Dumpers Thwaites MACH2077
Wheel Dumpers Thwaites MACH2077
Wheel Dumpers Thwaites MACH2077
Wheel Dumpers Thwaites MACH2077

Technical specs - MACH2077 Thwaites

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.15 t
Net load
2.3 t
Dump capacity
1.205 m³
Dumper type
R
Transport length
3.891 m
Transport width
1.488 m
Transport height
1.926 m
Travel speed
15 km/h
Loading height
1.356 m
Turning radius outside
7.5 m
Model series
2.3 Tonne
Engine manuf.
Yanmar
Engine type
3TNV88-BWWA
Engine power
18.1 kW
Max. torque
107 Nm
No. of cylinders
3

More technical details, like: standard tyres, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Heated dump body
No
All-wheel drive
No
Track
No
Aircondition
No

Download datasheets (PDF)

Thwaites MACH2077 FAQ

When was the Thwaites MACH2077 manufactured?

The Thwaites MACH2077 was first produced in 2022.

How much does the Thwaites MACH2077 wheel dumper weigh?

The Thwaites MACH2077 wheel dumper weighs 2.15 tons.

What are the transport dimensions of the Thwaites MACH2077 wheel dumper?

The Thwaites MACH2077 has a transport length of 3.891 meters, a transport width of 1.488 meters, and a transport height of 1.926 meters.

What is the travel speed of the Thwaites MACH2077 wheel dumper?

The Thwaites MACH2077 has a travel speed of 15 km/h.

What is the turning radius of the Thwaites MACH2077 wheel dumper?

The Thwaites MACH2077 has an outside turning radius of 7.5 meters.

What is the material handling capacity of the Thwaites MACH2077 wheel dumper?

The Thwaites MACH2077 has a net load capacity of 2.3 tons and a dump capacity of 1.205 cubic meters.

How much is a Thwaites MACH2077 Wheel dumper (2022u20132025) worth?

The residual value of the Thwaites MACH2077 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
